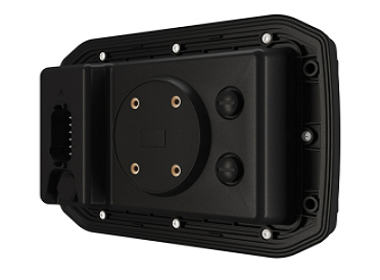

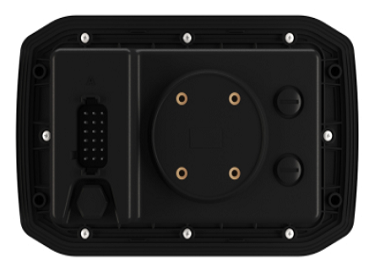

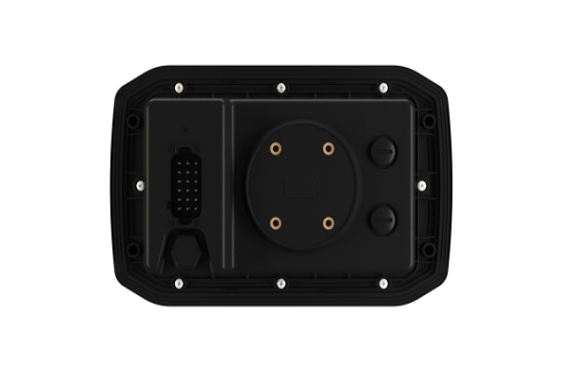

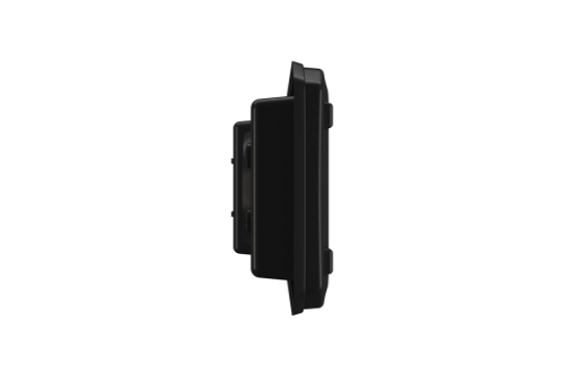

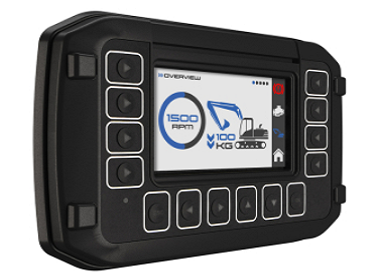

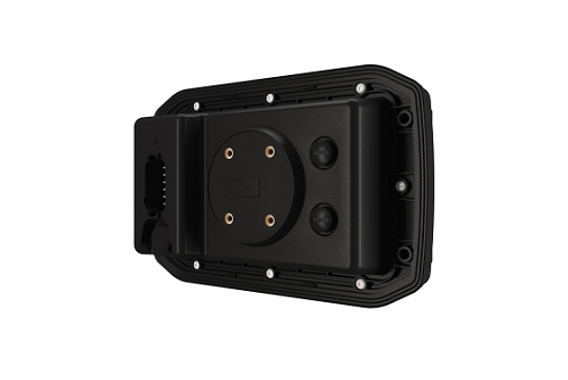

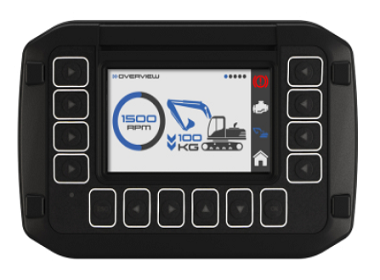

M840 4.3" Pro Display
M840 4.3" Pro Display
4.3" Programmable Display
The DSE M840 is a 4.3-inch programmable display developed for use on vehicles and off-highway machinery. It offers an enhanced 64 MB of SDRAM, 20 MB of CODESYS 20 MB of User Data memory, and an additional Cortex M7 400 MHz clock speed. The display provides high levels of flexibility for multiple application types and is configured using CODESYS 3.5. The M840 can be used as a stand-alone product or with additional M-Series products to create extremely powerful applications.
OVERALL SIZE
131 mm x 208 mm x 56 mm (5.15” x 8.2” x 2.2”)
WEIGHT
< 1 kg
CUT-OUT
163 mm x 98 mm (6.42" x 3.86")
PRODUCT VARIANTS
M840-02 - M840 Programmable Display
KEY FEATURES / SUMMARY
- Robust HMI/programmable display specifically designed for mobile applications
- Optically bonded 4.3” colour screen for harsh environments
- Powerful Cortex M7 400 MHz clock speed + M4 200 MHz clock speed
- 64 MB of SDRAM / 20 MB CODESYS Application / 20 MB User Data
- 8 KB retained data • 4 configurable inputs, digital and analogue capability
- 4 configurable digital outputs (2 x PWM)
- 2 independent CAN interfaces, J1939, CAN open and Raw CAN
- 1 analogue camera interface PAL and NTSE formats
- Flexible user programming via CODESYS 3.5
- IP67 protection/NEMA 6
KEY FEATURES
- Robust HMI/programmable display specifically designed for mobile applications.
- Optically bonded 4.3" color screen for harsh environments.
- Powerful Cortex M7 400 MHz clock speed + M4 200 MHz clock speed.
- 64 MB of SDRAM / 20 MB CODESYS application / 20 MB user data memory.
- 4 configurable inputs, digital and analog capability.
- 4 configurable digital outputs (2 x PWM).
- 2 independent CAN interfaces, J1939, CAN open and Raw CAN.
- 1 analog camera interface PAL and NTSC formats.
- Flexible user programming via CODESYS 3.5.
- IP67 protection/NEMA 6.
KEY BENEFITS
- Developed to withstand the toughest environments.
- Delivers excellent clarity in high-humidity environments.
- Provides fast operating response times.
- Allows large files to be stored and accessed quickly.
- Provides excellent system flexibility.
- Delivers multiple communication options.
- Direct access to meet demanding comms requirements.
- Industry-standard programming software.
- Ensures high-level protection against dust ingress and water penetration.
