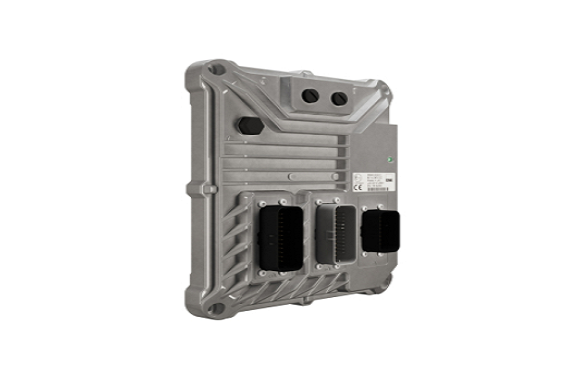

M640 Pro Controller (68 I/O)
M640 Pro Controller (68 I/O)
Programmable Controller (68 I/O)
The DSE M640 provides advanced programmable control options for vehicles and off-highway machinery and has been developed specifically for mobile applications. Sealed to IP67, the device incorporates a breather to allow the unit to equalize pressure and reduce condensation whilst filtering out liquids and other contaminants. The unit features Ethernet, USB, CAN, and configurable I/O.
Inside the unit is a powerful 32-bit processor with a 220 MHz clock speed for outstanding operating response times. There are also 4 independent CAN interfaces, J1939, CAN Open, and Raw CAN. Flexible user programming is provided via CODESYS 3.5.
OVERALL SIZE
49 mm x 240 mm x 190 mm (H x W x D)
1.46" x 9.45" x 7.48" (H x W x D)
WEIGHT
1.5 kg
KEY FEATURES / SUMMARY
- Controller specifically designed for mobile applications
- Powerful 32-bit processor with 220 MHz clock speed
- 4 MB application memory
- 32 configurable inputs, digital and analog capability
- 36 configurable outputs with digital, PWM, and PWMi
- 4 independent CAN interfaces, J1939, CAN Open and Raw CAN
- Ethernet interface for communication
- Flexible user programming via CODESYS 3.5
- Ruggedized die-cast aluminum housing for IP67 protection
KEY FEATURES
- Controller specifically designed for mobile applications.
- Powerful 32-bit processor with 220 MHz clock speed.
- 32 configurable inputs with digital and analog capability.
- 36 configurable outputs with digital, PWM, and PWMI.
- 4 independent CAN interfaces, J1939, CAN open and RAW CAN.
- Ethernet interface for communications.
- Ruggedized die-cast aluminum housing for IP67 protection.
- Flexible user programming via CODESYS 3.5.
KEY BENEFITS
- Outstanding performance across multiple environments.
- Ensures the controller can handle the most complex applications.
- Gives the flexibility for tailoring operation requirements to meet system demands.
- Multiple output options to cope with demanding system requirements.
- Allows for an efficient and flexible network design.
- Increased speed and capacity for external communications.
- The device can be mounted directly outside the application.
- Industry-standard programming software.
