12" Programmable Display

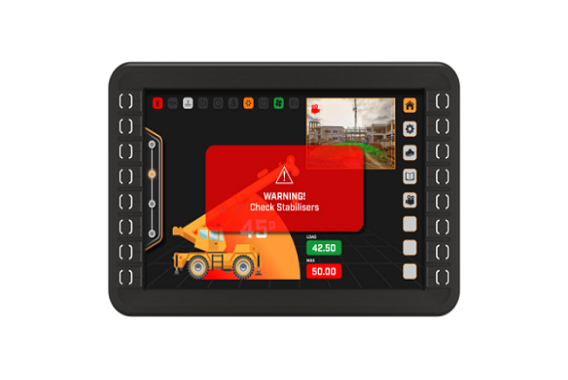

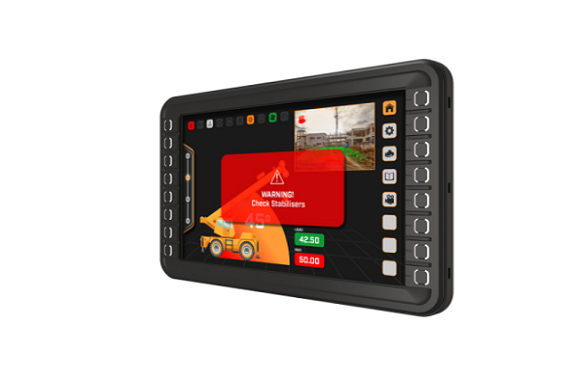

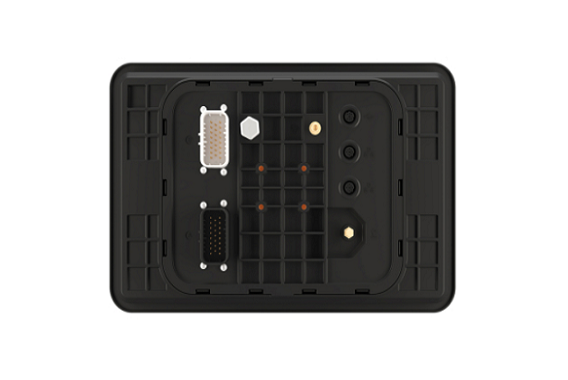

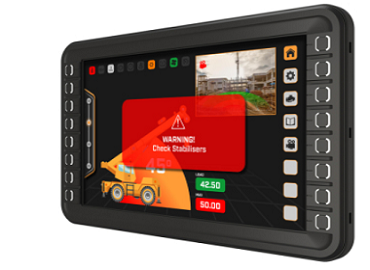

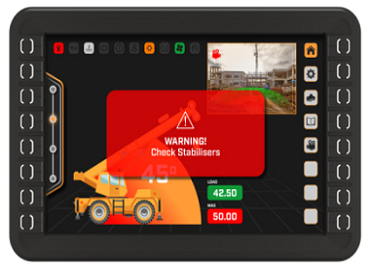

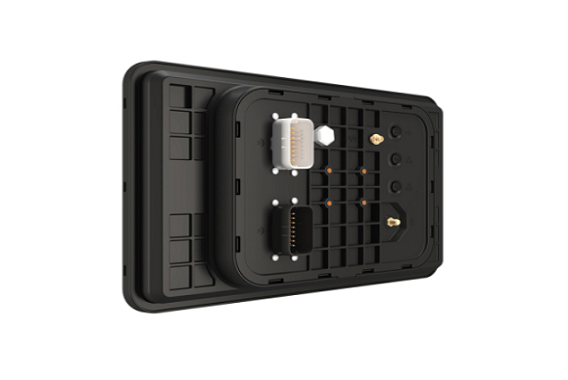

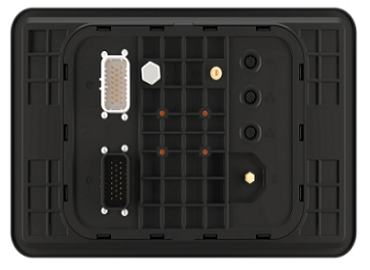

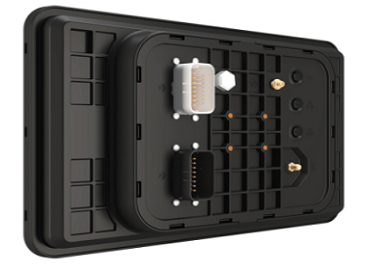

The DSEM812 is a 12" Programmable Display designed for use on vehicles and off-highway machinery and is the largest display in DSE's programmable display range. Developed for use as a standalone product or with the DSEM64x programmable controllers, the DSEM812 provides users with outstanding flexibility. The M812 is configured using CODESYS 3.5 or Qt, can be RAM or panel mounted, and has the option to be used in portrait or landscape orientation.

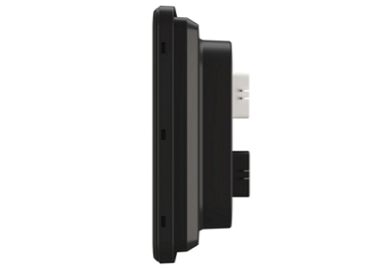

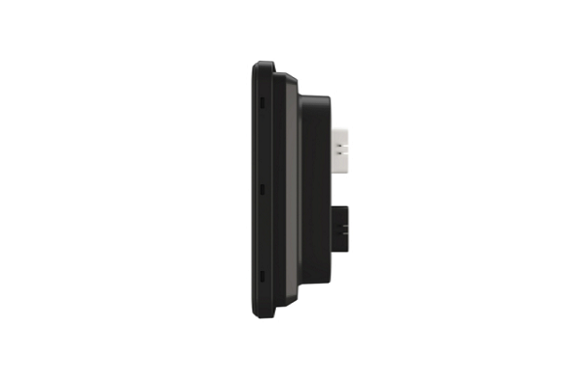

OVERALL SIZE

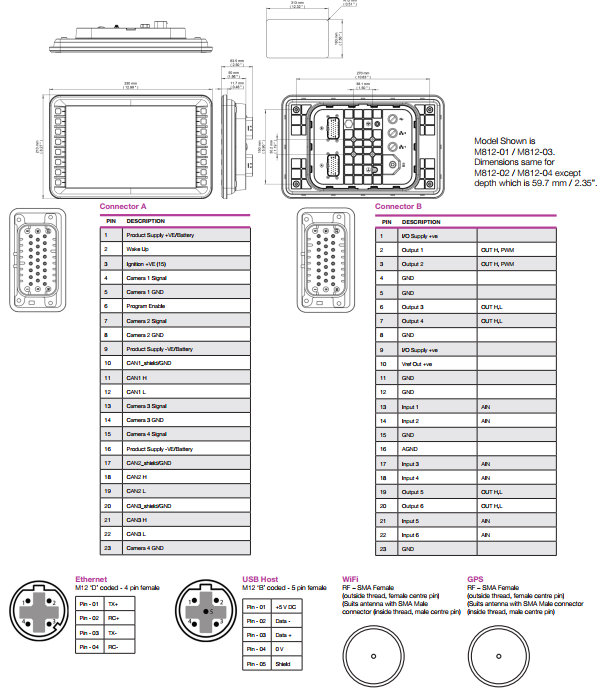

330 mm x 210 mm x 63.5 mm (12.99” x 8.26” x 2.5”)
WEIGHT
2.12 kg
PRODUCT VARIANTS
M812-01 - CODESYS  (Keyed)
M812-03 - Qt (Keyed)

Request a quote
m DATA SHEET
n Operators Manual
o PC Software / Software Manual

KEY FEATURES

  • Robust HMI/programmable display specifically designed for mobile applications.
  • Optically bonded 12.1 inch TFT, 1280 x 800, 16:10 resolution colour.
  • Capacitive touch with glove support.
  • Two variants, one with 16 keys with configurable colour backlight and touchscreen and one with touchscreen and no keys.
  • iMx6 quad processor.
  • 16 GB flash / 2 GB RAM.
  • Wake-up providing fast boot functionality.
  • USB host connections.
  • 4 analogue composite video camera support (PAL/NTSC).
  • 3 independent CAN interfaces. Each is configurable as J1939, CANopen or RAW CAN.
  • 2 independent Ethernet interfaces via M12 connectors (camera support).
  • 6 configurable outputs.
  • 6 inputs (digital, resistive, voltage, 0-20 mA, 4-20 mA, frequency input).
  • Wi-Fi support (external antenna required).
  • Wi-Fi support (external antenna required).
  • Wi-Fi support (external antenna required).
  • Built-In Web browser (CODESYS Variants.

KEY FEATURES/SUMMARY

  • Robust HMI/programmable display specifically designed for mobile applications
  • Optically bonded 12.1” TFT, 1280 x 800 16:10 resolution, colour
  • Capacitive touch with glove support
  • Two hardware variants are available, one with keys with a configurable colour backlight and touchscreen. One with touchscreen only (non-keyed)
  • iMx6 quad processor
  • 16 GB flash, 2 GB RAM
  • Wake-up providing fast boot functionality
  • USB host connections
  • 4 analogue (composite video) camera support (PAL/NTSC)
  • 3 independent CAN interfaces. Each configurable as J1939, CANopen or Raw CAN
  • 2 independent Ethernet interfaces, via M12 connectors (Camera support - RTP, RTSP, H264, MJPEG)
  • 6 configurable outputs
  • 6 inputs (digital, resistive, voltage, 0 – 20 mA, 4 – 20 mA, frequency input)
  • Wi-Fi support (external antenna required)
  • GPS (external antenna required)
  • Flexible user programming via CODESYS 3.5 or Qt
  • Built-in Web browser for communicating data over HTML to 3rd party devices
