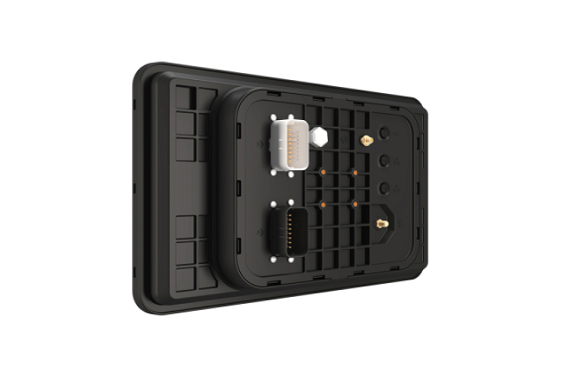

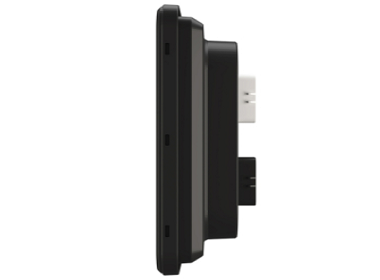

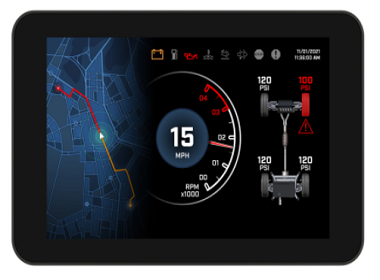

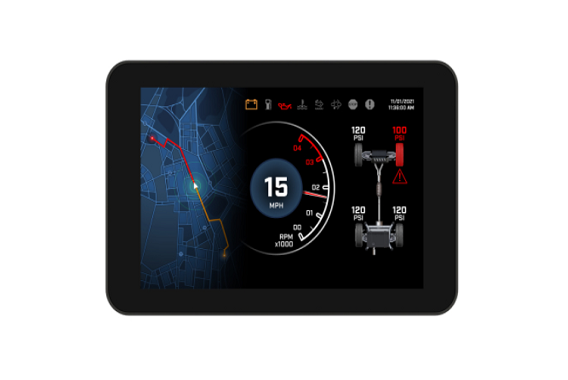

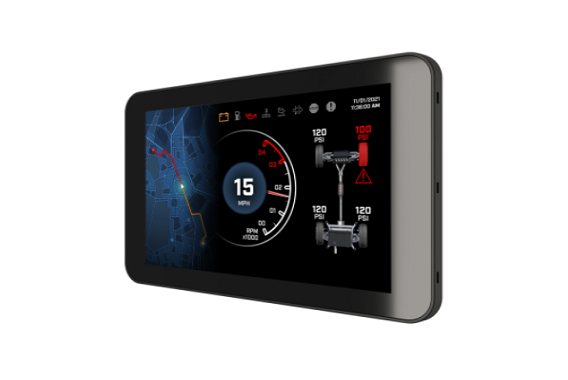

M812 Non Keyed
M812 12" Pro Non Keyed
12" Programmable Display
The DSEM812 is a 12" Programmable Display designed for use on vehicles and off-highway machinery and is the largest display in DSE's programmable display range. Developed for use as a standalone product or with the DSEM64x programmable controllers, the DSEM812 provides users with outstanding flexibility. The DSEM812 is configured using CODESYS 3.5 or Qt, can be RAM or panel-mounted, and has the option to be used in portrait or landscape orientation.
OVERALL SIZE
330 mm x 210 mm x 59.7 mm (12.99” x 8.26” x 2.35”)
WEIGHT
2.12 kg
PRODUCT VARIANTS
M812-02 - CODESYS (Non-Keyed)
M812-04 - Qt (Non Keyed)
KEY FEATURES
- Robust HMI/programmable display specifically designed for mobile applications.
- Optically bonded 12.1 inch TFT, 1280 x 800, 16:10 resolution colour.
- Capacitive touch with glove support.
- Two variants, one with 16 keys with configurable color backlight and touchscreen and one with a touchscreen and no keys.
- iMx6 quad processor.
- Wake-up provides fast boot functionality.
- USB host connections.
- 4 analog composite video camera support (PAL/NTSC).
- 3 independent CAN interfaces. Each is configurable as J1939, CANopen, or RAW CAN.
- 2 independent Ethernet interfaces via M12 connectors (camera support).
- 6 configurable outputs.
- 6 inputs (digital, resistive, voltage, 0-20 mA, 4-20 mA, frequency input).
- Wi-Fi support (external antenna required).
- GPS (external antenna required).
- Flexible user programming via CODESYS 3.5 or Qt.
- Remote Overview Display Functionality for Generator Applications.
- Built-in web browser (CODESYS Variants Only).
KEY BENEFITS
- Developed to withstand the toughest environments.
- Delivers excellent clarity in high-humidity environments.
- Allows operators to use the display without having to remove gloves.
- Users can choose the display most suited to their operating environment.
- Provides ultra-fast response times.
- Allows large files to be stored and accessed quickly.
- Reduces the time it takes for the display to wake up.
- Accepts multiple device connections.
- Provides high-level camera support.
- Provides flexible CAN communications options.
- Increased flexibility for Ethernet-connected devices.
- The high number of outputs for flexibility.
- High number of inputs for flexibility.
- Provides flexible support for Wi-Fi-enabled devices.
- Provides support for remote monitoring.
- The display can be programmed using CODESYS 3.5 or Qt for ultimate flexibility.
- Outstanding remote display option for generator control modules.
- Outstanding remote display option for generator control modules.
KEY FEATURES/SUMMARY
- Robust HMI/programmable display specifically designed for mobile applications
- Optically bonded 12.1” TFT, 1280 x 800 16:10 resolution, colour
- Capacitive touch with glove support
- Two hardware variants are available, one with keys with a configurable colour backlight and one touchscreen. One with touchscreen only (non-keyed)
- iMx6 quad processor
- 16 GB flash, 2 GB RAM
- Wake-up providing fast boot functionality
- USB host connections
- 4 analogue (composite video) camera support (PAL/NTSC)
- 3 independent CAN interfaces. Each configurable as J1939, CANopen or Raw CAN
- 2 independent Ethernet interfaces, via M12 connectors (Camera support - RTP, RTSP, H264, MJPEG)
- 6 configurable outputs
- 6 inputs (digital, resistive, voltage, 0 – 20 mA, 4 – 20 mA, frequency input)
- Wi-Fi support (external antenna required)
- GPS (external antenna required)
- Flexible user programming via CODESYS 3.5 or Qt
- Built-in Web browser for communicating data over HTML to 3rd party devices
