M870 7" Pro Display
M870 7" Pro Display
7" Programmable Display
M870-04 Qt (Touchscreen) Variant - Now Available.
Option to Mount in Landscape/Portrait Mode.

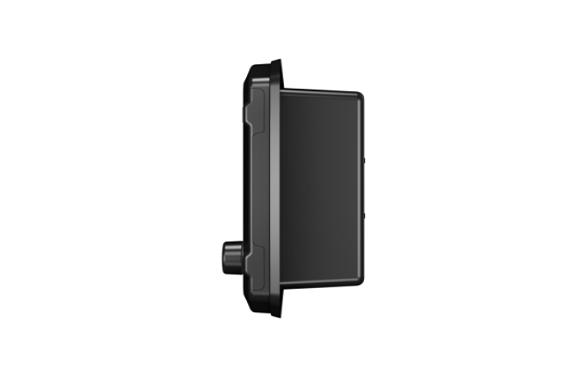

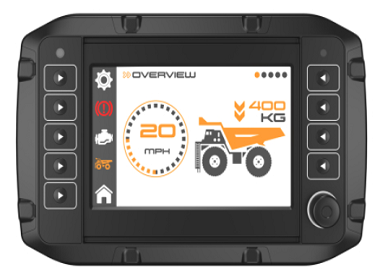

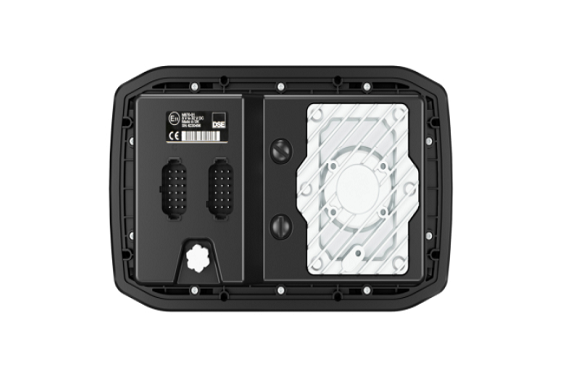

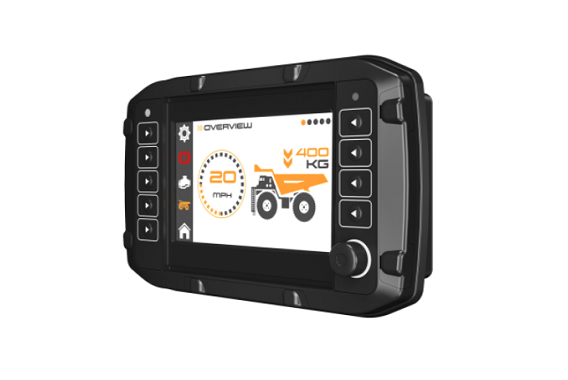

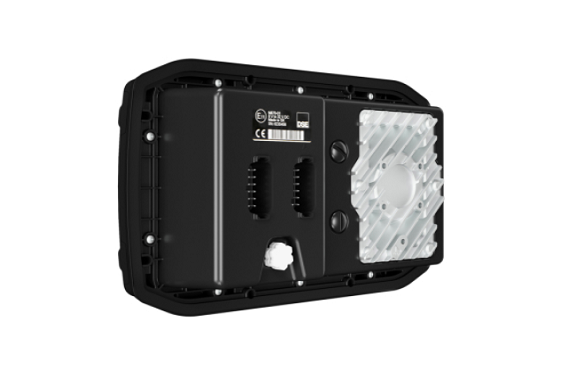

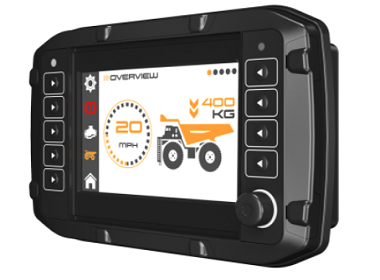

The DSEM870 is a 7" programmable display designed for use on vehicles and off-highway machinery. Developed for use as a standalone product or with the DSEM640 programmable controller, the DSEM870 provides users with outstanding flexibility. The M870 is configured using CODESYS 3.5 (M870-01 / M870-02 / M870-03) or Qt (M870-04).
OVERALL SIZE
272 mm x 165 mm x 81 mm (10.8” x 6.3” x 3.15”)
WEIGHT
1.25kg
CUT-OUT
231 mm x 133 mm (9.09" x 5.24")
PRODUCT VARIANTS
M870-01 - CODESYS (Standard)
M870-02 - CODESYS (Touchscreen)
M870-03 - CODESYS (Standard with WebVisu)
M870-04 - Qt (Touchscreen)
KEY FEATURES / SUMMARY
- Robust HMI/programmable display specifically designed for mobile applications
- Optically bonded 7” color screen for harsh environments
- Capacitive touchscreen (M870-02 / M870-04 variants)
- Powerful ARM Cortex A9 processor with 800 MHz clock speed
- 512 MB of DDR3 SDRAM and 2 GB of NAND mass storage
- 4 configurable inputs, 4 configurable digital outputs
- Supports landscape and portrait orientation
- 2 independent CAN interfaces, J1939, CAN open and Raw CAN
- Ethernet interface for communication
- Flexible user programming via CODESYS 3.5 or Qt
- IP67 protection/NEMA 6
- camera inputs
KEY FEATURES
- Optional touchscreen variant.
- Option to mount in landscape or portrait mode.
- Robust HMI/programmable display specifically designed for mobile applications.
- Optically bonded 7" color screen for harsh environments.
- Powerful ARM Cortex A9 processor with 800 MHz clock speed.
- 512 MB of DDR3 SDRAM and 2 GB of NAND mass storage.
- 4 configurable inputs, digital and analog capability.
- 4 configurable digital outputs.
- 2 independent CAN interfaces, J1939, CAN open and Raw CAN.
- Ethernet interface for communications.
- IP67 protection/NEMA 6.
- 2 camera inputs.
- Flexible user programming via Qt.
KEY BENEFITS
- Adds additional control and navigation options.
- Provides additional flexibility for product use.
- Developed to withstand the toughest environments.
- Delivers excellent clarity in high-humidity environments.
- Provides fast operating response times.
- Allows large files to be stored and accessed quickly.
- Provides excellent system flexibility.
- Delivers multiple communication options.
- Direct access to meet demanding comms requirements.
- Ensures high-level protection against dust ingress and water penetration.
- Provides flexibility to the user.
- Industry-standard programming software.
- The controller can be programmed using QT language for added flexibility (M870-04 variant).
