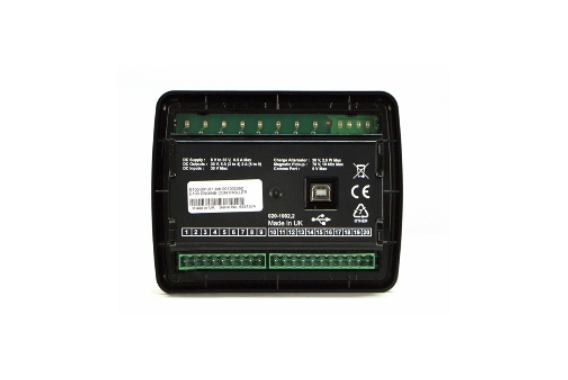

E100 Engine Control
E100 Engine Control
Engine Only Control Module
The E100 is an Engine Only Control Module designed to provide flexible engine control with built-in monitoring and protection. The module is fully configurable for a wide range of applications including engine-driven pumps and compressors.
OVERALL SIZE
140 mm x 113 mm x 43 mm (5.5" x 4.4" x 1.7")
PANEL CUT OUT
118 mm x 92 mm (4.6" x 3.6")
PRODUCT VARIANTS
E100-01 - E100 Engine Controller
The DSEE100 is an easy-to-use engine controller designed to provide flexible control with built-in monitoring and protection. The DSEE100 is fully configurable for a wide range of applications such as engine-driven pumps and compressors.
The engine control functions, including the engine start and load control can be achieved both automatically & manually. The monitoring and configuration of the system variables allow the DSEE100 to start and stop the engine.
The built-in run-time scheduler allows for standalone running. Together with the onboard event log, fault finding is made easy. The DSE Configuration Suite PC Software is used to easily make adjustments to the operating parameters of the controller, reducing valuable development and commissioning time. This software is available free of charge from the DSE Website.
KEY FEATURES
• Largest back-lit icon display in its class
• Real-time clock provides accurate event logging
• Fully configurable via the fascia or PC using USB communication
• Extremely efficient power save mode
• Fuel and start outputs
• 4 configurable DC outputs
• 3 configurable analog/digital inputs
• 4 configurable digital inputs
• 3 engine maintenance alarms
• Engine speed protection
• Engine hours counter
• Engine pre-heat
• Engine run-time scheduler
• Battery voltage monitoring
• Start on low battery voltage
• Configurable remote start input
• Comprehensive warning, controlled shutdown, or shutdown protection upon a fault condition
• LCD alarm indication
• Event log (50)
KEY BENEFITS
• Ultimate size-to-feature ratio
• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout for ease of use
• Multiple parameters are monitored simultaneously which are displayed on the largest back-lit icon display in its class
• The module can be configured to suit a wide range of applications
• Uses DSE Configuration Suite PC Software for simplified configuration
• Licence-free PC software
• IP65 rating (with optional gasket) offers increased resistance to water ingress
