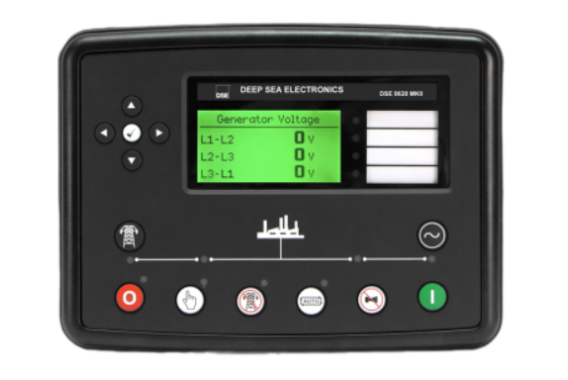

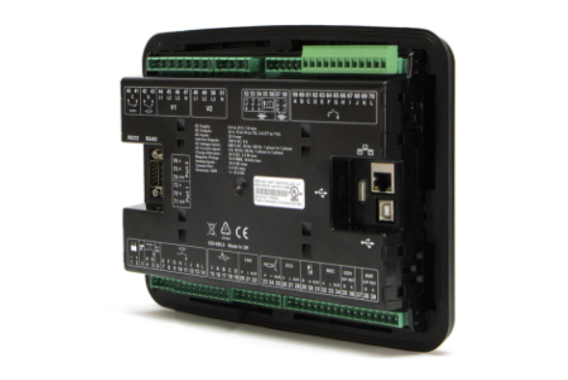

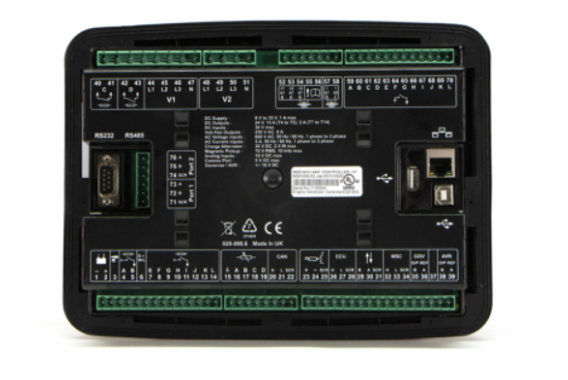

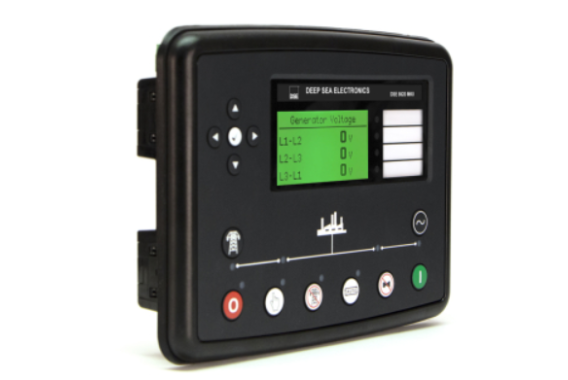

8620MKII Synchronizing Mains
8620MKII Synchronizing Mains

8620MKII Synchronizing Mains

Synchronising Auto Mains (Utility) Failure Load Share Control Module

The DSE8620MKII represents the latest in complex load-sharing & synchronizing control technology. Designed to synchronize a single genset with a mains (utility) supply, the DSE8620MKII control module is packed with multiple features and benefits that are unrivaled across the generator control industry.
The controller also has the option to be configured for use as a DSE8610MKII Auto Start Load Sharing & Synchronising Control Module. When converted for use as a DSE8610MKII the unit provides generator to generator load share functionality.

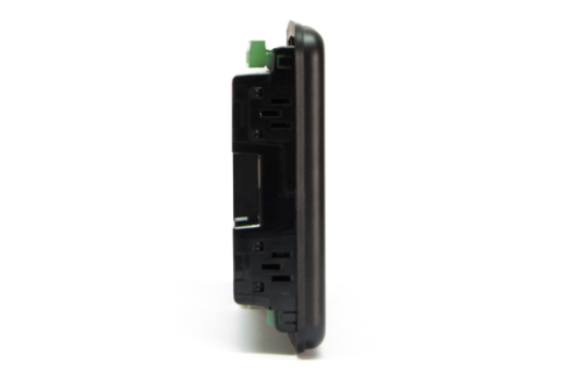

OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")

WEIGHT
0.88kg

PRODUCT VARIANTS
8620-02 - 8620 MKII Synchronising Auto Mains (Utility) Failure Load Sharing Control Module

Request a quote
m DATA SHEET
n Operators Manual
o PC Software / Software Manual
  • The DSE8620 MKII is an easy-to-use Synchronising Auto Mains (Utility) Failure Control Module suitable for paralleling single gensets (diesel or gas) with the mains (utility) supply. The controller can be configured for use as a DSE8610 MKII Auto Start Control Module. When converted for use as a DSE8610 MKII the unit provides a generator to generator load share.
  • Designed to synchronize a single genset with a single main (utility) supply the DSE8620 MKII will automatically control the change over from mains (utility) to generator supply or run the generator in synchronization with the mains (utility) to provide no break, peak lopping and peak shaving power solutions.
  • System alarms are annunciated on the LCD screen (multiple language options available), illuminated LED, and audible sounder.
  • Comprehensive communications are also available via RS232, RS485, and Ethernet for remote PC control monitoring and integration into building management systems
  • The event log will record 250 events to facilitate easy maintenance, and an extensive number of fixed and flexible monitoring, metering, and protection features are included.
  • Designed to offer increased built-in support for active sensors for 0 V to 10 V & 4 mA to 20 mA. Comprehensive communication and system expansion options are available.
  • Using the DSE PC Configuration Suite Software allows easy alteration of the operational sequences, timers, and alarms. With all communication ports capable of being active at the same time, the DSE8620 MKII is ideal for a wide variety of demanding load-share applications.

KEY LOAD SHARE FEATURES:

  • Peak lopping/sharing (with appropriate DSE mains (utility) controller
  • Manual voltage/frequency adjustment
  • R.O.C.O.F. and vector shift protection
  • Mains (Utility) decoupling
  • Mains (Utility) decoupling test mode
  • Direct governor and AVR control
  • Volts and frequency matching
  • kW and kvar load sharing

KEY FEATURES

  • Comprehensive synchronising & load-sharing capabilities • Built in governor and AVR control • Base load (kW export) control • Positive & negative kVAr export control • Mains (Utility) decoupling protection • Mains (Utility) failure detection • Mains (Utility) power (kW, kV Ar, kV A & pf) monitoring • Mains (Utility) de-coupling protection • Mains (Utility) kW export protection • Peak lopping & shaving functionality • 4-Line back-lit LCD text display • Multiple Display Languages • Five key menu navigation • LCD alarm indication • Heated display option available • Customisable power-up text and images • DSENet® expansion compatibility • Data logging & trending facility • Internal PLC editor • Protections disable feature • Fully configurable via PC using USB, RS232, RS485 & Ethernet communication • Front panel configuration with PIN protection • Power save mode • 3 phase generator sensing and protection • Generator current and power monitoring (kW, kvar, kVA, pf) • kW and kvar overload alarms • Reverse power alarms
  • Over-current protection • Unbalanced load protection • Independent earth fault protection • Breaker control via fascia buttons • Fuel and start outputs configurable when using CAN • 8 configurable DC outputs • 2 configurable volt-free relay outputs • 4 configurable analogue/digital inputs • Built-in sensors to support 0 V to 10 V & 4 mA to 20 mA • 12 configurable digital inputs • Configurable 5 stage dummy load and load shedding outputs • CAN, MPU and alternator frequency speed sensing in one variant • Real-time clock • Manual and automatic fuel pump control • Engine run-time scheduler • Fuel usage monitor and low fuel level alarms • Simultaneous use of all communication ports • Remote SCADA monitoring via various DSE software applications • MODBUS RTU & TCP support with configurable MODBUS pages for integration into building management systems (BMS) • 3 configurable maintenance alarms • Compatible with a wide range of CAN engines, including tier 4 engine support • Uses DSE Configuration Suite PC Software for simplified configuration

KEY BENEFITS

  • Can be configured for use as a DSE8610 MKII • 132 x 64-pixel ratio display for clarity • Real-time clock provides accurate event logging • Ethernet communication, which provides built-in advanced remote monitoring. • Can be integrated into building management systems (BMS) and programmable logic control (PLC) • Increased input and output expansion capability via DSENet® • Licence-free PC software • IP65 rating (with supplied gasket) offers increased resistance to water ingress • Extended internal PLC editor allows user configurable functions to meet specific application requirements.

EXPANSION DEVICES

  • DSE124 CAN/MSC Extender • DSE2130 Input Expansion Module • DSE2131 Ratio-metric Input Expansion Module • DSE2133 RTD & Thermo-couple Expansion Module • DSE2152 Ratio-metric Output Expansion Module • DSE2157 Output Expansion Module • DSE2548 LED Expansion
