8680 Bus Tie
8680 Synchronizing Bus Tie
Synchronising Generator Bus Tie Control Module

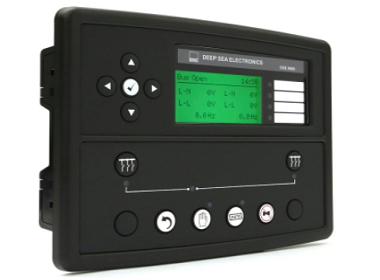

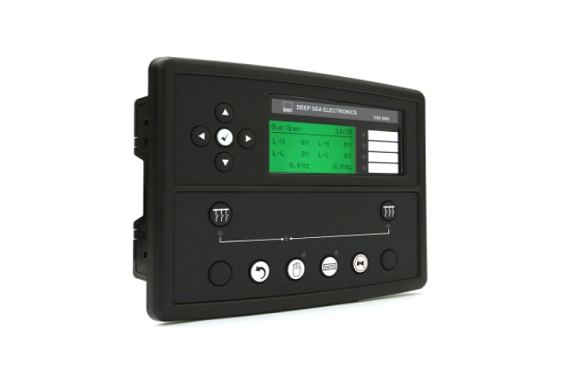

The DSE8680 is an intelligent control module designed to control a generator bus-tie breaker. The control module features technology that automatically manages the synchronizing and check-sync across the breaker using the DSE multi-set communications (MSC) link when opening and closing the bus-tie breaker.
OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.86kg
PRODUCT VARIANTS
8680-01 - 8680 Synchronising Generator Bus Tie Control Module
- The DSE8680 module is designed to control a generator bus-tie breaker. The module manages the synchronizing and check-sync across the breaker automatically, via the DSE MSC (Multi-set Communications) Link, when opening or closing the bus-tie breaker.
- The DSE8680 module has been designed to work with the DSE8x10 and DSE8x60 Load Share control modules which support up to sixteen DSE8680s with no DSE8x60 or up to two DSE8680s with one to fourteen DSE8x60s. This provides a standalone, fully integrated solution, without the need for PLC.
- With all communication ports capable of being active at the same time, the DSE8680 is ideal for a wide variety of demanding load-share applications
KEY FEATURES
- Comprehensive synchronizing & load share capabilities
- Connects to two DSE MSC links, one for ‘bus 1’ and another for ‘bus 2’
- Advanced integral PLC editor
- 11 Configurable inputs
- 8 Configurable outputs
- DSENet® expansion compatibility
- User-configurable RS232,
- RS485 and Ethernet communications
- Remote SCADA monitoring via various DSE software applications
- MODBUS RTU & TCP support
- User-configurable MODBUS pages
- Advanced SMS control and fault messaging (additional GSM modem required)
- Easy access to diagnostic pages including modem diagnostic pages
- Data logging and trending
- Front panel editing with PIN protection
- Fully configurable using DSE
- Configuration Suite PC software via USB
- 4 Line back-lit LCD text display
- LED and LCD alarm indication
- Configurable display languages
- Customizable status screens
- Configurable event log (250)
- Backed up real-time clock
KEY BENEFITS
- Automatic control of the DSE MSC link when the breaker is opened/closed for synchronizing
- Instrumentation shows the status and measurements of both buses
- Built-in RS232, RS485 & Ethernet can be used at the same time
- High number of inputs and outputs
- Worldwide Language Support
- Compatible with load share systems containing DSE5500, DSE7500, and DSE8600 series.
- Contact DSE for further details.
- 132 x 64-pixel ratio display for clarity
- Real-time clock provides accurate event logging
- Ethernet communications provide advanced remote monitoring at a low cost
- Can be integrated into building management systems (BMS)
- Increased input and output expansion capability via DSENet®
- Licence-free PC software
- IP65 rating (with supplied gasket) offers increased resistance to water ingress
- PLC editor allows the user-configurable functions to meet specific application requirements
