8660MKII Auto Transfer Switch & Mains
8660MKII ATS & Mains

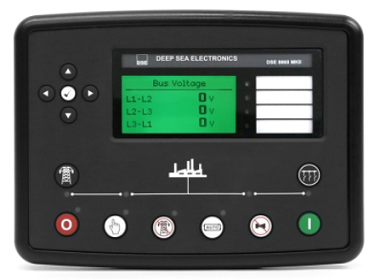

Auto Transfer Switch & Mains (Utility) Control Module
The DSE8660 MKII is the latest and most advanced Auto Transfer Switch & Mains (Utility) Control Module within the DSE synchronizing and load-sharing control module range. Developed alongside The DSE8660 MKII this control module provides industry-leading features and benefits for the most complex grid-type generator installations.
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
WEIGHT
0.88kg
PRODUCT VARIANTS
8660-02 - 8660 MKII Auto Transfer Switch & Mains (Utility) Control Module (Ct, Rtc)
- The DSE8660 MKII is an easy-to-use single or multi-mains controller with automatic transfer switch capability. Designed to synchronize single or multiple DSE8610 MKIIs and DSE8680 MKII with single or multiple mains (utility) supplies, the DSE8660 MKII will automatically control the change over from mains (utility) to generator supply or run generators in synchronization with the mains (utility) to provide no-break, peak lopping, and peak shaving power solutions.
- The module can indicate operational status and fault conditions on the LCD screen (multiple languages available), by illuminated LED, audible sounder, and SMS messaging.
- Comprehensive communications are also available via RS232, RS485 & Ethernet for remote PC control and monitoring, and integration into building management systems. The comprehensive event log will record up to 250 events to facilitate maintenance.
- An extensive number of fixed and flexible monitoring and protection features are included. Easy alteration of the sequences, timers, and alarms can be made using the DSE PC Configuration Suite Software. The selected configuration is also available via the module’s front panel.
- With all communication ports capable of being active at the same time, the DSE8xxx MKII Series is ideal for a wide variety of demanding load-share applications.
KEY LOAD SHARE FEATURES (WITH DSE8610 MKII) :
- Peak lopping/shaving • Sequential set start • Manual voltage/frequency adjustment • R.O.C.O.F. and vector shift protection • Generator load demand • Automatic hours run balancing • Mains (Utility) decoupling • Mains (Utility) decoupling test mode • Bus failure detection • Volts and frequency matching. • kW & kvar load sharing
KEY FEATURES
- Mains (utility) failure detection
- Mains (utility) power monitoring (kW, kV Ar, kV A and pf)
- Comprehensive synchronizing and load-sharing capabilities
- Peak lopping & shaving functionality
- Mains (utility) kW export protection
- Mains (utility) de-coupling protection
- Advanced integral PLC editor
- User configurable RS232, RS485 & Ethernet communications
- MODBUS RTU & TCP support
- User-configurable MODBUS pages
- Advanced SMS control and fault messaging (addition GSM modem required)
- DSENet expansion compatible
- Data logging and trending
- 4-Line back-lit LCD text display
- Multiple display languages
- Five key menu navigation
- Front panel editing with PIN protection
- Customizable status screens
- Configurable inputs (11)
- Configurable outputs (8)
- Configurable timers and alarms
- Multiple entry scheduler
- Configurable event log (250)
- Easy access to diagnostic pages
- LED and LCD alarm indication
- USB connectivity
- Backed up real-time clock
- Fully configurable via DSE configuration Suite PC Software
- Power modes for when in parallel with the mains
- Redundant MSC communication wired to CAN ports
- True manual breaker control when in manual mode
- Native no bus breaker support for signal ATS applications
- Separate ramp-up and ramp-down rates are configurable via PLC
- In-built SNMP
- Configurable CAN transmit & receive
- Battery Chargers on DSENet®
KEY BENEFITS
- The part solution allows up to 1.2 km between mains (utility) & bus breakers.
- Compatible with DSE5510, DSE7510 & DSE8x10 series of modules
- 132 x 64-pixel ratio display for clarity
- The real-time clock provides accurate event logging
- Ethernet communication provided built-in advanced remote monitoring.
- Can be integrated into building management systems (BMS) and programmable logic control (PLC)
- Increased input and output expansion capability via DSENet®
- Licence-free PC software
- IP65 rating (with supplied gasket) offers increased resistance to water ingress
- Advanced Internal PLC editor allows user-configurable functions to meet specific application requirements.
