8610MKII Sync & Load Share
8610MKII Sync & Load Share

8610MKII Sync & Load Share

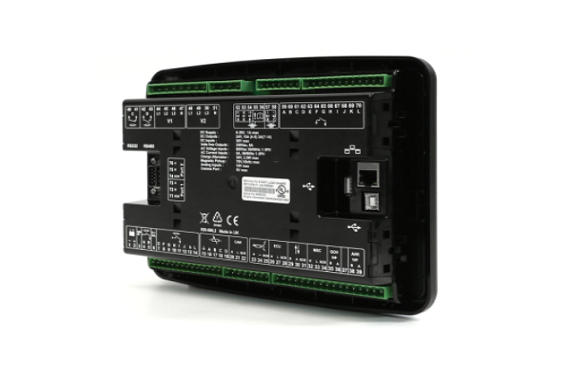

Synchronising & Load Sharing Auto Start Control Module

The DSE8610 MKII represents the latest in complex load-sharing & synchronizing control technology. Designed to handle the most complex grid-type generator applications the DSE8610MKII control module is packed with multiple features and benefits that are unrivaled across the generator control industry.
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")

WEIGHT
0.88kg

PRODUCT VARIANTS
8610-02 - 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc

Request a quote
m DATA SHEET
n Operators Manual
o PC Software / Software Manual
  • The DSE8610 MKII is a market-leading Synchronising Auto Start Control Module suitable for use in a multi-generator load share system, designed to synchronize up to 32 generators including electronic and non-electronic engines.
  • The DSE8610 MKII monitors the generator and indicates operational status and fault conditions, automatically starting or stopping the engine on load demand or fault conditions.
  • System alarms are annunciated on the LCD screen (multiple language options available), illuminated LED, and audible sounder.
  • The event log records 250 events to facilitate easy maintenance, and an extensive number of fixed and flexible monitoring, metering, and protection features are included. Designed to offer increased built-in support for active sensors for 0 V to 10 V & 4 mA to 20 mA. Comprehensive communication and system expansion options are available.
  • Using the DSE PC Configuration Suite Software allows easy alteration of the operational sequences, timers, and alarms. With all communication ports capable of being active at the same time, the DSE8610 MKII is ideal for a wide variety of demanding load-share applications.
  • The Advanced PLC tool within Configuration Suite provides users with an extremely powerful configuration tool for the most demanding applications.

KEY LOAD SHARE FEATURES:

  • Peak lopping/sharing (with appropriate DSE mains controller) • Sequential set start • Manual voltage/frequency adjustment • R.O.C.O.F. and vector shift protection • Generator load demand • Automatic hours run balancing • Mains (Utility) decoupling • Mains (Utility) decoupling test mode • Dead bus sensing • Bus failure detection • Direct governor and AVR control • Volts and frequency matching • kW and kvar load sharing • Dead bus synchronizing

KEY FEATURES

  • Comprehensive synchronizing & load sharing capabilities
  • Built-in governor and AVR control
  • Base load (kW export) control
  • Positive & negative kVAr export control
  • Mains (Utility) decoupling protection
  • 4-Line back-lit LCD text display
  • Multiple Display Languages
  • Five key menu navigation
  • LCD alarm indication
  • A heated display option is available
  • Customizable power-up text and images
  • DSENet expansion compatibility
  • Data logging & trending facility
  • Advanced PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB, RS232, RS485 & Ethernet communication
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • kW and kvar overload alarms
  • Reverse power alarms
  • Over current protection
  • Unbalanced load protection
  • Independent earth fault protection
  • Breaker control via fascia buttons
  • Fuel and start outputs are configurable when using CAN
  • 8 configurable DC outputs
  • 2 configurable volt-free relay outputs
  • 4 configurable analog/digital inputs
  • Built-in sensors to support 0 V to 10 V & 4 mA to 20 mA
  • 12 configurable digital inputs
  • Configurable 5-stage dummy load and load-shedding outputs
  • CAN, MPU, and alternator frequency speed sensing in one variant
  • Real-time clock
  • Manual and automatic fuel pump control
  • Engine run-time scheduler
  • Fuel usage monitor and low-fuel level alarms
  • Simultaneous use of all communication ports
  • Remote SCADA monitoring via various DSE software applications
  • MODBUS RTU & TCP support with configurable MODBUS pages for integration into building management systems (BMS)
  • Advanced SMS messaging (additional external modem required)
  • Start & stop capability via SMS messaging
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Power modes for when in parallel with the mains
  • Redundant MSC communication wired to CAN ports
  • True manual breaker control when in CAN mode
  • Water in fuel digital input
  • Fuel tank bund alarm digital input
  • Separate ramp-up and ramp-down rates are configurable via PLC
  • Configurable CAN message timeouts
  • In-built SNMP
  • Configurable CAN transmit & receive
  • Battery chargers on DSENet®
  • Persistent governor & AVR outputs
  • Filter generator voltage display
  • Filter bus voltage display
  • Inhibit remote start
  • Power & reactive power control
  • Remote start on load demand
  • Configurable engine icons
  • Alternative load demand schemes
  • Variable speed generator support
  • CAN AVR support
