2152 Analog Output Expansion
2152 Analog Output Expansion

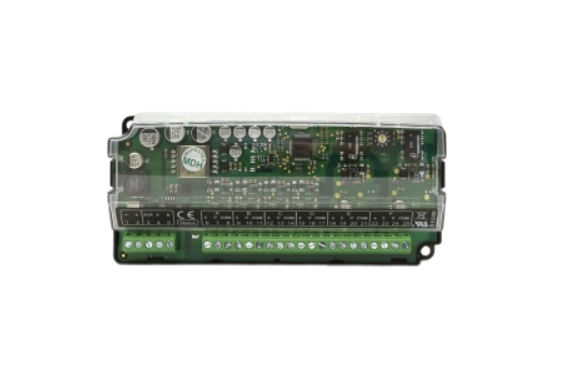

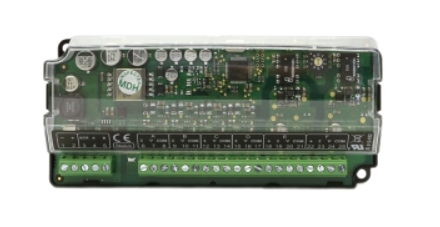

DSENet® Analogue Output (6) Expansion Module
The DSE2152 is an analogue output expansion module providing 6 additional configurable outputs to the control system. Up to 4 x DSE2152 modules can be linked together to provide up to 24 additional output options.

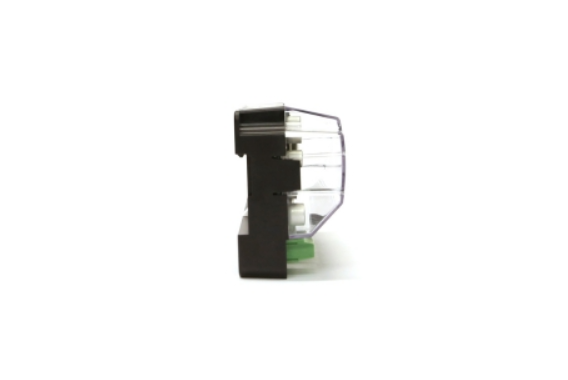

OVERALL SIZE
165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”)
WEIGHT
0.24kg
PRODUCT VARIANTS
2152-01 - 2152 Analogue Output Expansion Module

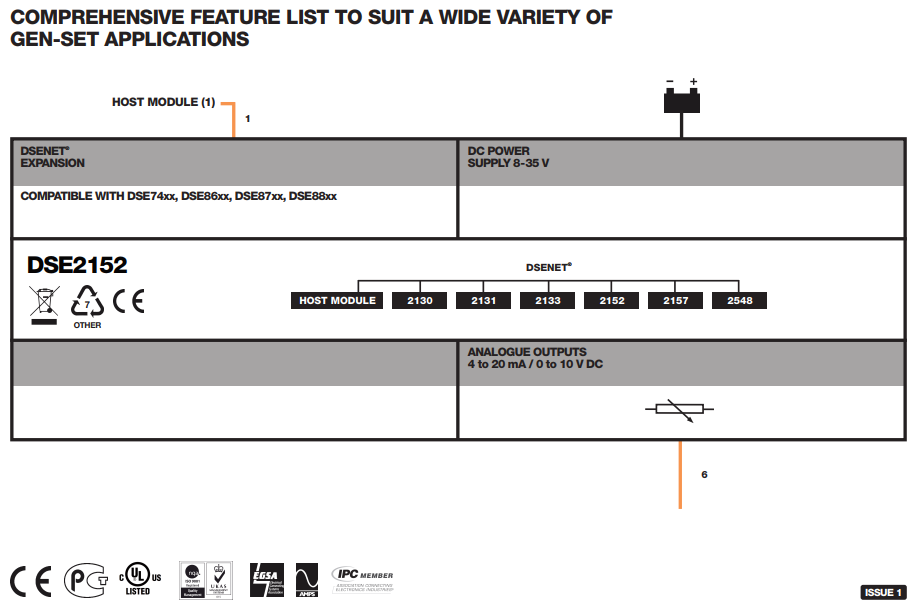

The DSE2152 Analogue Output Expansion Module is used in conjunction with supported DSENet controllers to provide 6 additional outputs. The outputs can be individually configured as 0 to 10 V or 4 to 20 mA, via the ‘host controller’.
LED indication is provided for ‘Power On’ and ‘Link Lost’

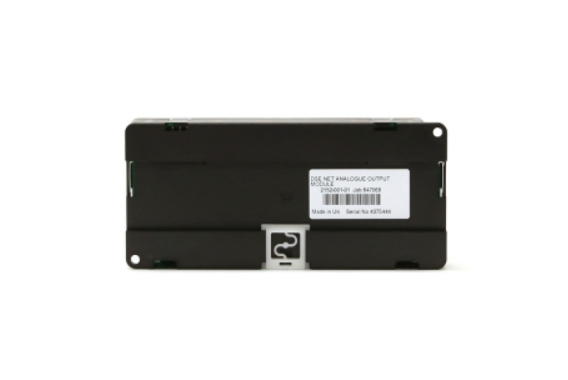

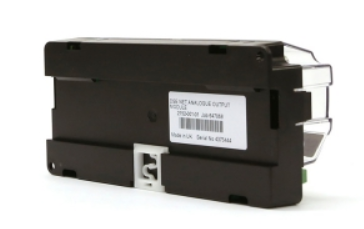

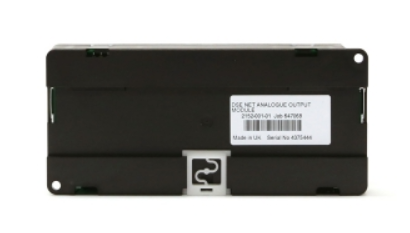

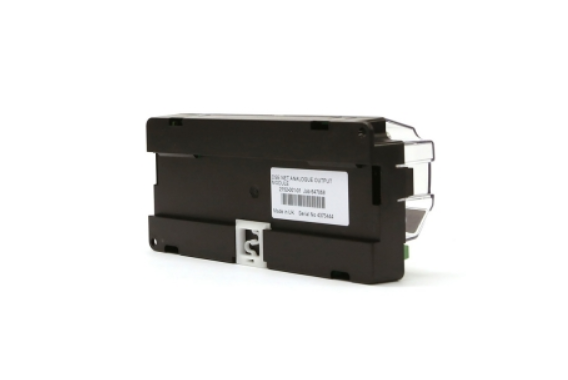

The DSE2152 is designed to be mounted within a control panel, either on the panel DIN rail utilizing the integral mounts, or chassis mounted, utilizing the mounting holes.
Up to four DSE2152 modules can be linked together to provide up to 24 additional outputs. An ID switch is provided on the module for identification.
KEY FEATURES
- Analog output expansion module for supported DSENet controllers
- 6 outputs configurable as 4 to 20mA (0 to 20mA) and 0 to 10 V DC
- Power On/Link Lost LED
- A maximum of 4 modules can be connected to 1 host control module to provide up to 24 additional configurable outputs
- Works up to 1.2 km (0.75 miles) from the host controller
- Terminal strip connection for quick and easy set up
- Simplified configuration using
- DSE PC Configuration Suite Software through host controller
KEY BENEFIT
- Ideal for applications where additional control monitoring is critical
