124 Canbus Extender
124 Canbus Extender
CANbus Extender

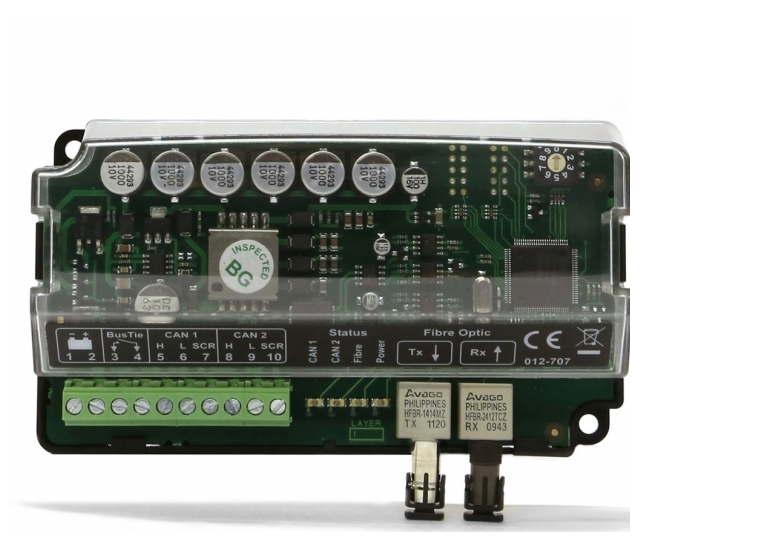

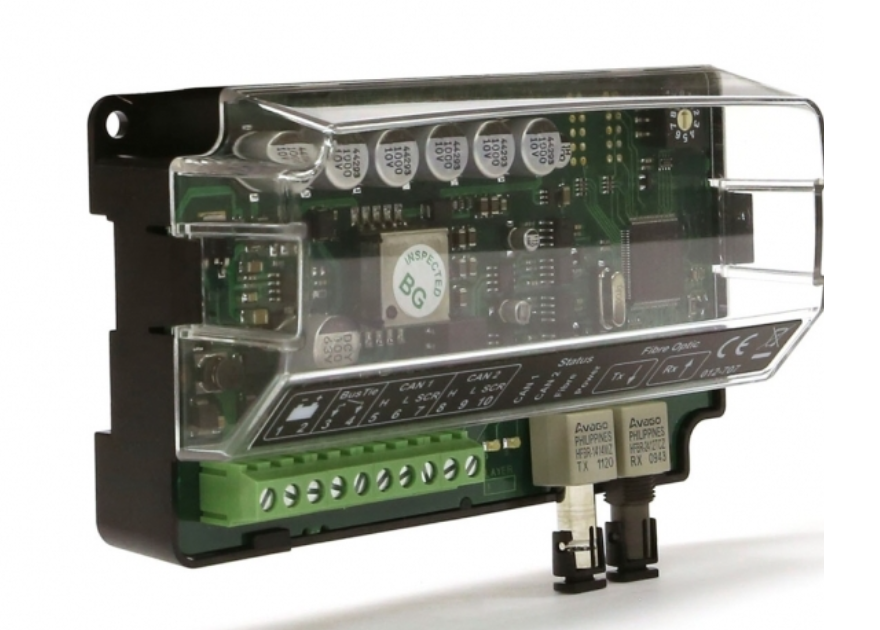

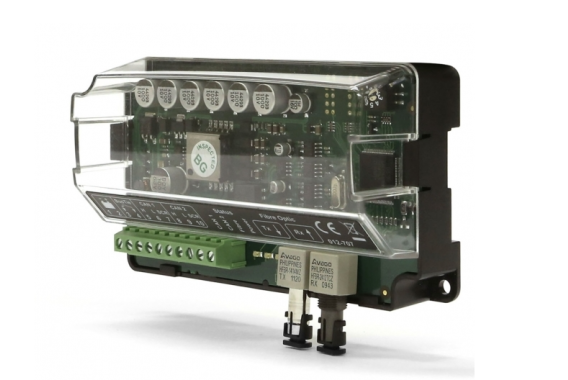

The DSE124 CANbus extender has been designed to extend a multi-set comms load share link or engine CANbus.
OVERALL SIZE
134 mm x 77 mm x 49 mm (5.3” x 3.0” x 1.9”)
WEIGHT
0.2kg
PRODUCT VARIANTS

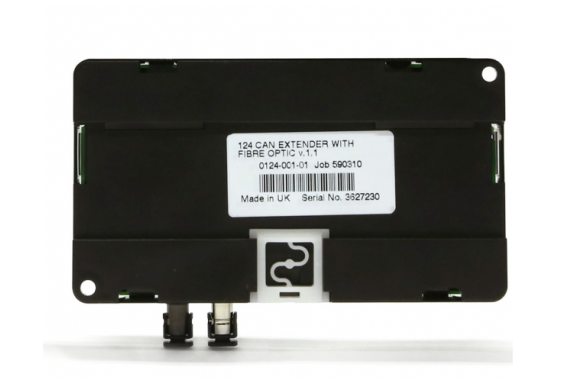

0124-01 - 124 Canbus Extender (Fibre Optic)
The DSE124 is a CANbus extender capable of extending either the Multiset Comms (MSC) Load Share Link or engine CANbus.
4 red LEDs indicate the module’s operational status.
Part Number: 0124-01
With fiber optic port. This version can be used to provide a 2000m segment between two extenders with no reduction in speed or number of modules that can be accommodated.
A maximum of 8 copper 250m segments and 2 fiber optic 2000m segments can be used together.
Both modules have been designed for DIN rail mounting or for fitting directly to the chassis.
DC SUPPLY
MINIMUM SUPPLY VOLTAGE
8 V Continuous
CRANKING DROPOUTS
Able to survive 0V for 50mS providing the supply was at least 10V before the dropout and recovers to 5 volts afterwards.
MAX OPERATING SUPPLY VOLTAGE
35V continuous.
MAX OPERATING SUPPLY CURRENT
191mA at 12V, 99mA at 24V.
Digital input grounded, passing MSC protocol at 75% bus capacity, Fibre port fitted.
MAXIMUM STANDBY CURRENT
147mA at 12V, 76mA at 24V
digital input open circuit, no activity on
CAN or Fibre ports.
DIGITAL INPUT
1 x configurable digital input
