Input Expansion Module

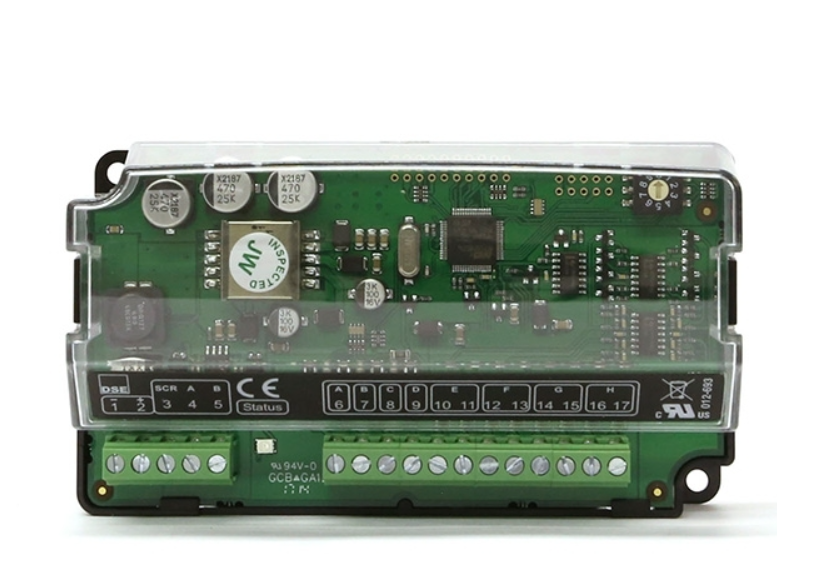

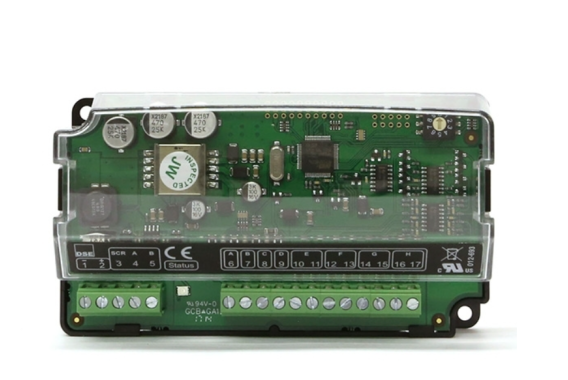

2130 Input Expansion Module
DSENet® Input (8) Expansion Module
The DSE 2130 is an input expansion module providing 8 additional inputs to the control module. Four of these can be configured for use as analog inputs. Up to 4 x DSE 2130 modules can be linked together to provide up to 32 additional inputs.
OVERALL SIZE
134 mm x 76 mm x 49 mm (5.3” x 3.0” x 1.9”)
WEIGHT
0.18kg
PRODUCT VARIANTS
2130-00 - 2130 Input Expansion Module
The DSE2130 is an input expansion module for use with DSENet® compatible control modules. The additional input capabilities of the DSE2130 give OEMs the flexibility to meet increasingly complex industry specifications.
The DSE2130 provides an additional eight digital inputs, with four of these configurable for use as analog inputs. All inputs are configured within the host controller.
The module incorporates a ‘DIN’ rail and chassis mountings allowing convenient fixing into a panel.
KEY FEATURES
- Power On/Link Lost LED
- 4 Modules can be connected to 1 host controller at a time
- Can provide up to 32 additional inputs
- Works up to 1.2 km (0.75 miles) from the host module
- Terminal strip connection for quick and easy set-up
ID SWITCH
- The rotary ID switch is used to select the address of the DSE2130 expansion module, as the host control module is capable of working with up to four DSE2130 expansion modules at the same time
