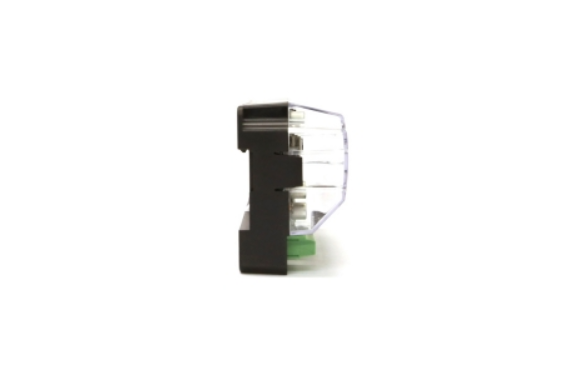

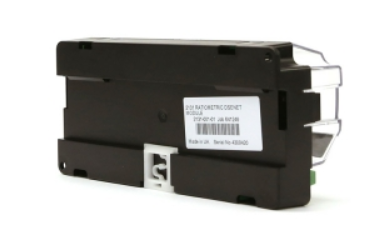

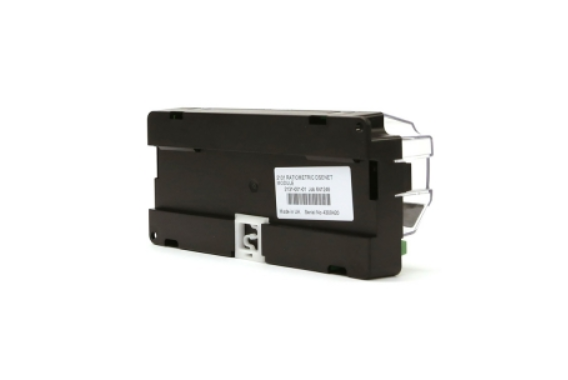

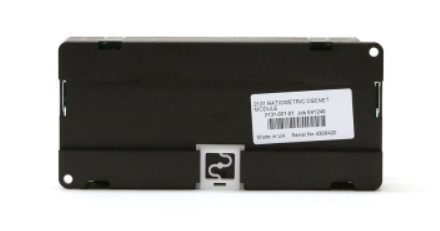

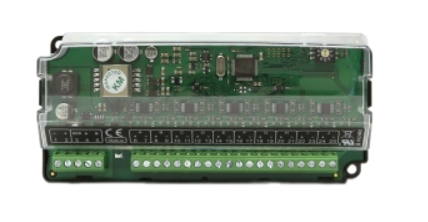

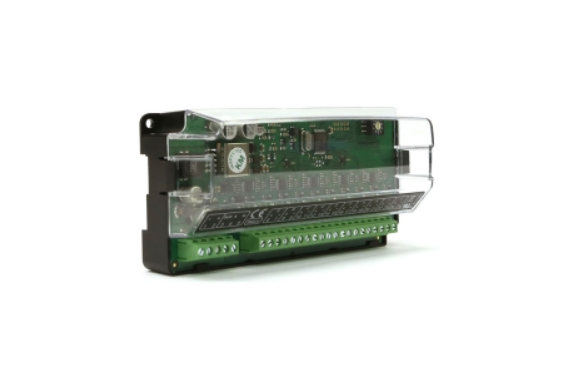

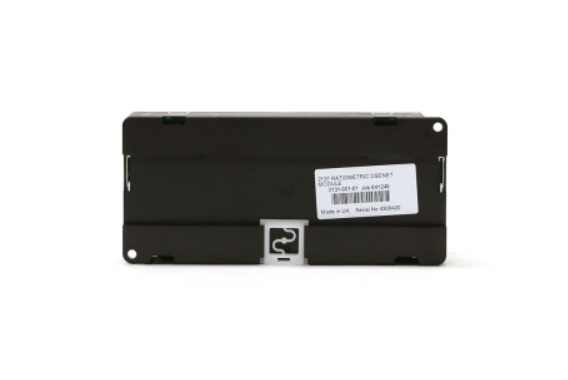

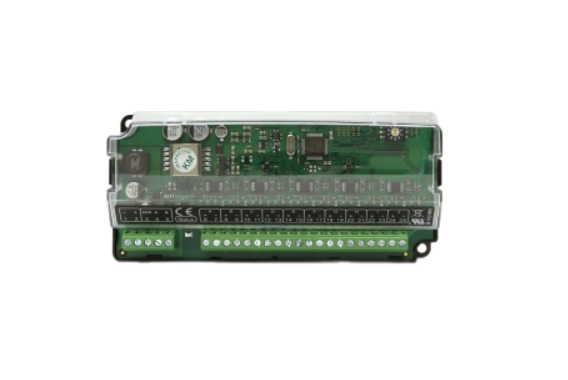

2131 Input Expansion Module
2131 Input Expansion Module

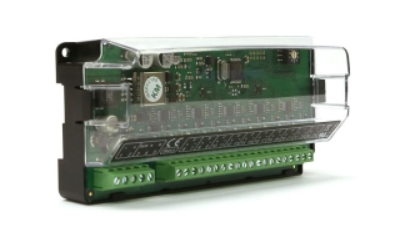

DSENet® Ratiometric Input (10) Expansion Module
The DSE2131 is a ratiometric input expansion module providing 10 additional inputs to the control module. Up to 4 x DSE2131 modules can be linked together to provide up to 40 additional inputs.
OVERALL SIZE
165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”)
WEIGHT
0.22kg
PRODUCT VARIANTS
2131-01 - 2131 Ratiometric Input Expansion Module

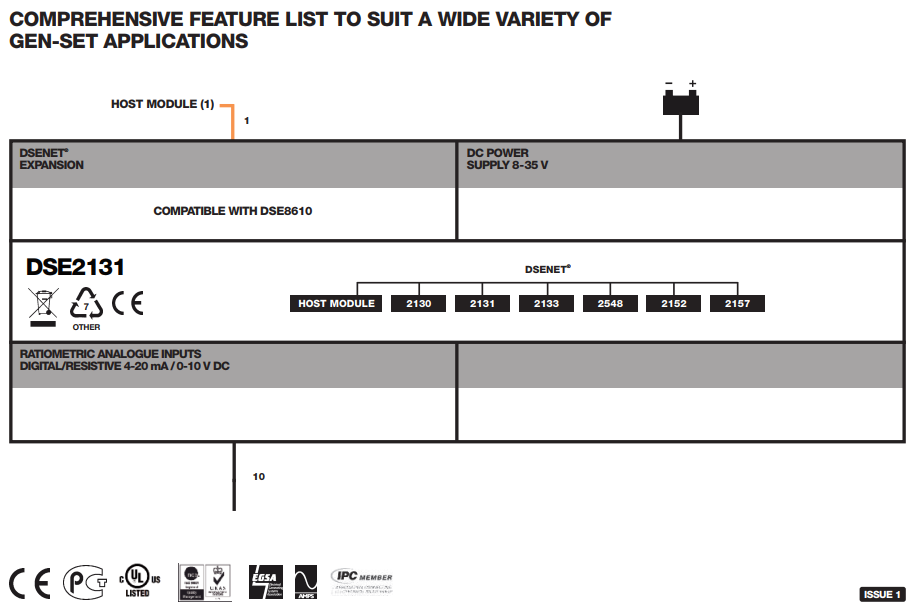

The DSE2131 Ratiometric Input Expansion module is used in conjunction with supported DSENet controllers to provide additional, flexible, input functionality. The module’s ID switch is configurable from the module and the 10 inputs can be configured from within the ‘host controller’.
The ratiometric inputs can be configured in several ways to connect to digital switches, resistive sensors, 0-10 V DC signals, or 4-20 mA signals.
LED indication is provided for ‘Power On’ and ‘Link Lost’
The DSE2131 is designed to be mounted within a control panel, either on the panel DIN rail utilizing the integral mounts, or chassis mounted, utilizing the mounting holes.
KEY FEATURES
- Power On/Link Lost LED
- 10 inputs configurable for digital/resistive 4-20 mA and 0-10 V DC
- A maximum of 4 modules can be connected to 1 host control module to provide up to 40 additional configurable inputs
- Works up to 1.2 km (0.75 miles) from the host controller
- Terminal strip connection for quick and easy set-up
KEY BENEFITS
- Ideal for applications where additional control monitoring is critical
