2157 Output Expansion Module
2157 Output Expansion Module

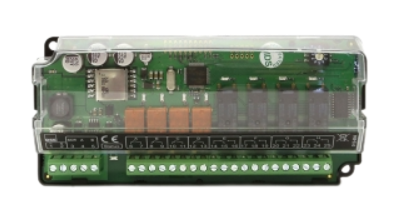

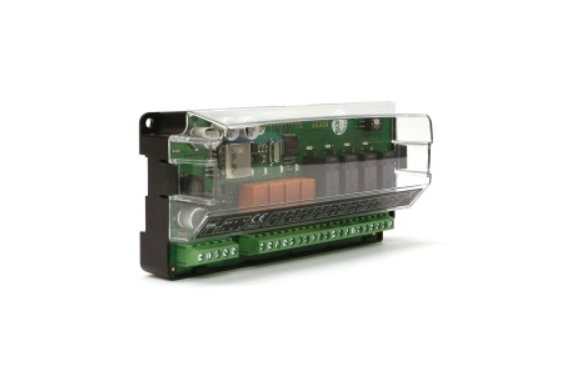

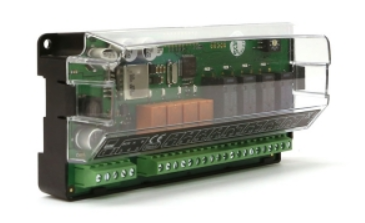

DSENet® Output (8) Expansion Module
The DSE 2157 is an output relay expansion module providing 8 additional outputs to the control system. Up to 10 x DSE 2157, modules can be linked to together to provide increased output options.
OVERALL SIZE
165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”)
WEIGHT
0.28kg
PRODUCT VARIANTS
2157-01 - 2157 Output Expansion Module
The DSE2157 is an output relay expansion module for use with DSENet® compatible control modules. The DSE2157 has been designed to extend a host module’s output capabilities.
A maximum of 10 DSE2157s can be connected to an individual module at any one time. All outputs are configurable via the host controller.

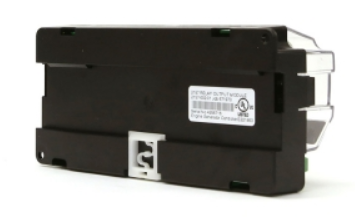

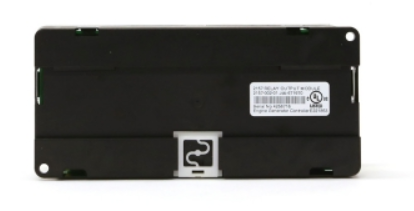

The additional output capabilities of the DSE2157 give OEMs the flexibility to meet increasingly complex industry specifications. The module incorporates a ‘DIN’ rail and chassis mountings allowing convenient fixing into a panel.
The module will work up to 1 KM (0.6 miles) from the host control module.
KEY FEATURES
- Power On/Link Lost LED ID SWITCH
- 10 expansion modules can be connected to 1 host controller at a time
- 8 configurable relay contacts with LED indicators:
- 4 Normally Open (N/O)
- 4 Change Over (C/O)
- Terminal strip connection for quick and easy set-up
ID SWITCH
The rotary ID switch is used to select the address of the DSE2157 expansion module, as the host control module is capable of giving instructions to several DSE2157 expansion modules at the same time.
