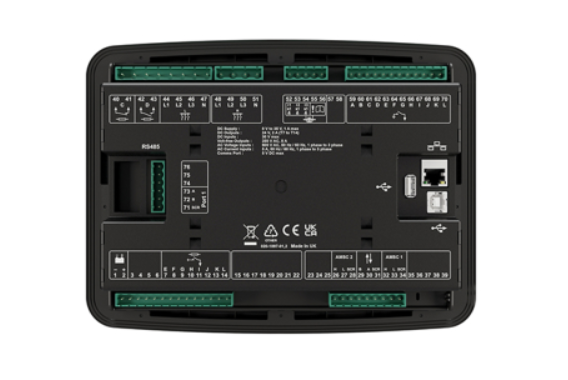

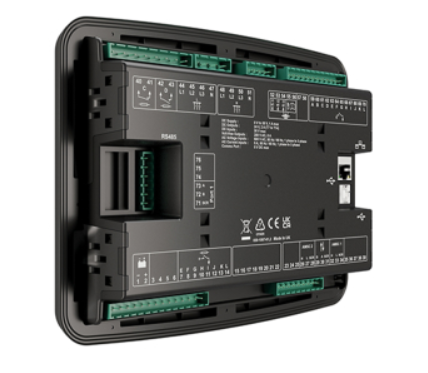

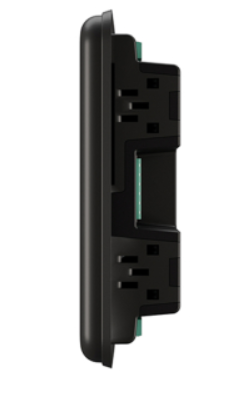

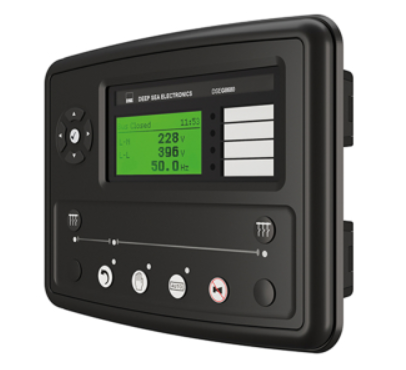

G8680 Bus-Tie
G8680 Bus-Tie
User Configurable as Bus-Tie Controller / Load Switch Controller
The G8680 controls a generator bus-tie breaker. It automatically manages the synchronizing of the 2 buses using the AMSC (advanced multi-set communications) link and has a built-in check sync function. The controller has been designed to work with the DSEG8600 when configured as a single-set / multi-set or mains (utility) controller and with the dedicated G8660 mains (utility) controller.
Overall (W x H x D)
248 mm x 182.6 mm x 45.2 mm / 9.77” x 7.19” x 1.78”
Panel Cut-Out (W x H)
220 mm x 160 mm / 8.66” x 6.3”
Maximum Panel Thickness
8 mm / 0.31”
- The G8680 controls a generator bus-tie breaker. It automatically manages the synchronizing of the 2 buses using the AMSC (advanced multi-set communications) link and has a built-in check sync function. The controller has been designed to work with the DSEG8600 when configured as a single-set / multi-set or mains (utility) controller and with the dedicated G8660 mains (utility) controller.
Key Features
- Comprehensive synchronizing functionality
- Close on to dead-bus
- Load ramping
- CT support (4)
- 12 configurable inputs
- 10 configurable outputs (2 volt-free)
- Advanced PLC functionality including multi-purpose PIDs
- RS485 communications
- Ethernet communications
- Modbus RTU & TCP support
- User-configurable MODBUS pages
- Remote SCADA monitoring
- Virtual shared inputs, outputs, states, and instrumentation values via AMSC
Features
- DSENet® expansion
- Data logging
- DSE configuration suite software
- Front-panel editing
- 4-line LCD text display
- LED / LCD alarm indication
- Configurable languages
- Customizable status screens
- Configurable event log (250)
- Backed-up real-time clock
- IP65 (with gasket)
