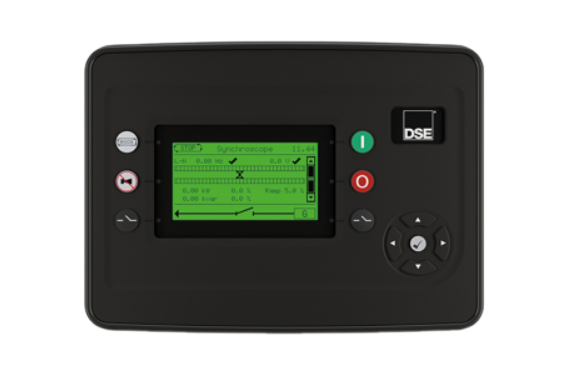

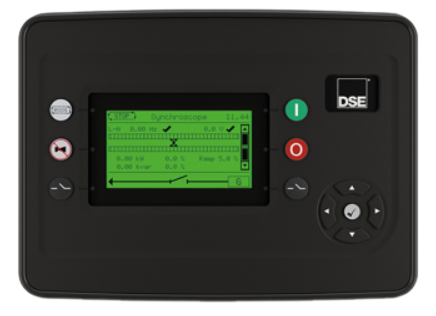

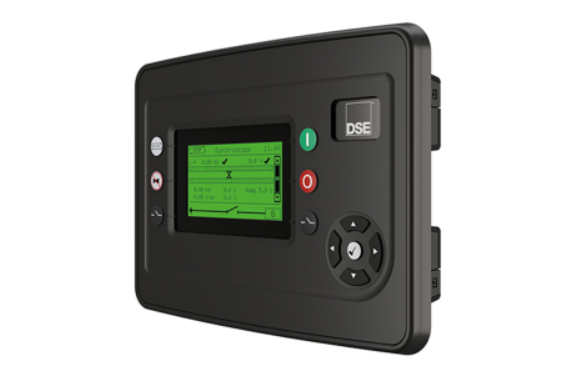

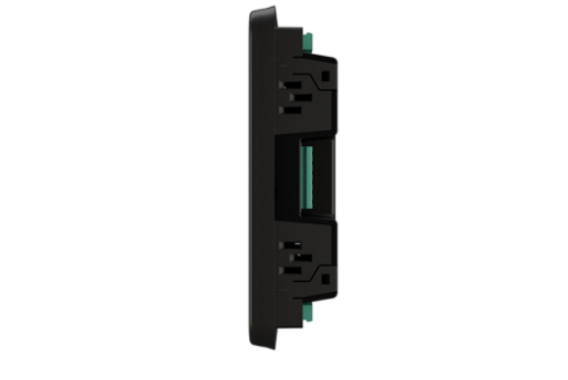

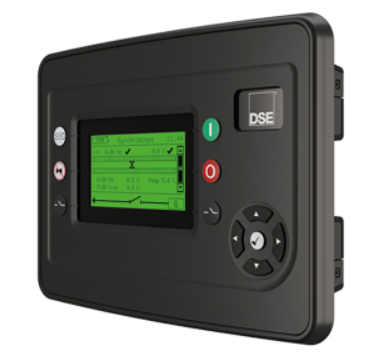

G8660 Mains Controller
G8660 Mains Controller

G8660 Mains Controller

Mains (Utility) Controller

The G8660 is an ATS / Mains (Utility) controller with an integral heater designed to work with the G8600 that is configured for use as a multi-set controller. The G8660 allows multiple generators to synchronize with a mains (utility) supply and controls switching power between generator and mains (utility) sources, without loss of supply to the load.

Overall (W x H x D)
248 mm x 182.6 mm x 45.2 mm / 9.77” x 7.19” x 1.78”
Panel Cut-Out (W x H)
220 mm x 160 mm / 8.66” x 6.3”
Maximum Panel Thickness
8 mm / 0.31”




Request a quote
m DATA SHEET
n Operators Manual
o PC Software / Software Manual
  • The G8660 is an ATS / Mains (Utility) controller with an integral heater designed to work with the G8600 that is configured for use as a multi-set controller. The G8660 allows multiple generators to synchronize with a mains (utility) supply and controls switching power between generator and mains (utility) sources, without loss of supply to the load.


Key Features

  • Ability to configure multiple bus segments
  • Spinning reserve
  • Load demand schemes
  • Advanced multi-set communications link (AMSC)
  • Advanced PLC functionality including multi-purpose PIDs
  • Phase locking
  • Virtual inputs
  • On-screen mimic
  • Multiple application support
  • Multi-level pin-protected front panel editor
  • Integral LCD heater
  • Enhanced high-resolution 240 x 128-pixel display
  • Load sharing & VAr sharing
  • Virtual shared inputs, outputs, states, and instrumentation values via AMSC
  • Touch screen panel PC support (G80XX)
  • Zero sequence voltage protection
  • Integral gasket (IP65 protection)

Features

  • Base load (kW export) control
  • Positive & negative kVAr export control
  • Mains (utility) decoupling protection
  • Multiple language support
  • 3-phase mains (utility) sensing
  • 3-phase bus sensing
  • Mains (utility) failure detection
  • Mains (utility) current & power monitoring
  • Configurable timers
  • Integrated SNMP
  • Data logging
  • PC configuration
  • DSENet® (Expansion support)
  • Flexible I/O (inputs/outputs)
  • Automatic and front panel breaker control
  • Power-save mode
