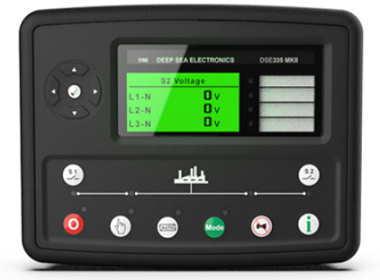

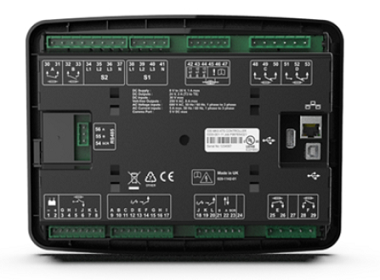

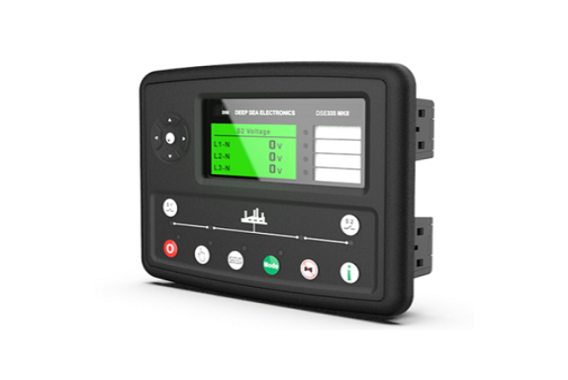

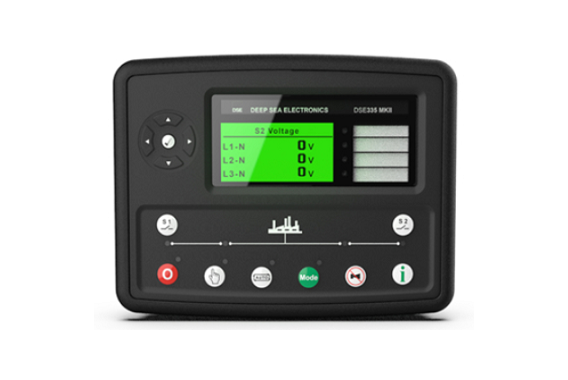

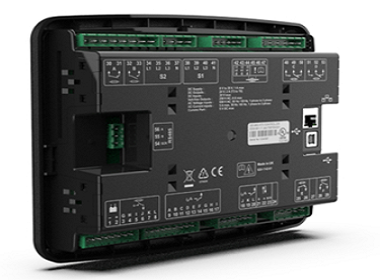

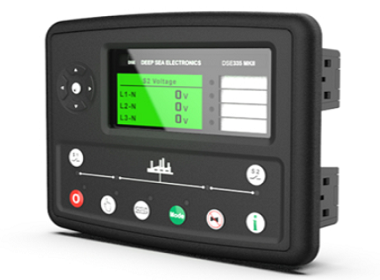

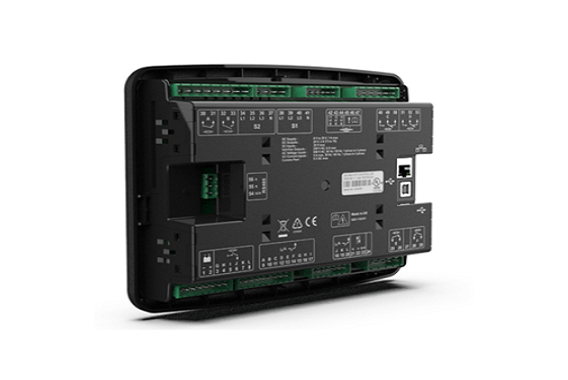

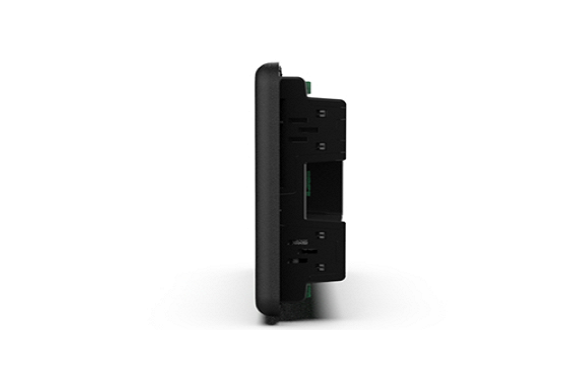

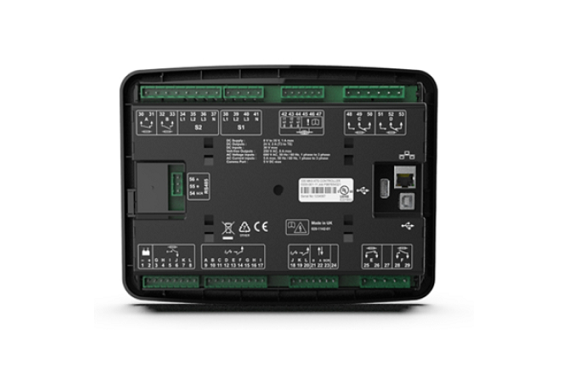

Auto Transfer Switch Control Module

The DSE335MKII is an automatic transfer switch controller designed to monitor the voltage and frequency of incoming AC supplies from two different sources. These are either generators mains (utility), or a combination of both. The module monitors S1 (source 1) and in the event of a failure issues a start command to S2 (source 2). Various timing sequences are available to prevent nuisance starting on minor supply breaks.

OVERALL SIZE

240 mm x 181 mm x 42 mm  (9.4” x 7.1” x 1.6”)

PANEL CUT-OUT

220 mm x 160 mm (8.7” x 6.3”)

MAXIMUM PANEL THICKNESS

8 mm (0.3”)

Request a quote
m DATA SHEET
n Operators Manual
o PC Software / Software Manual

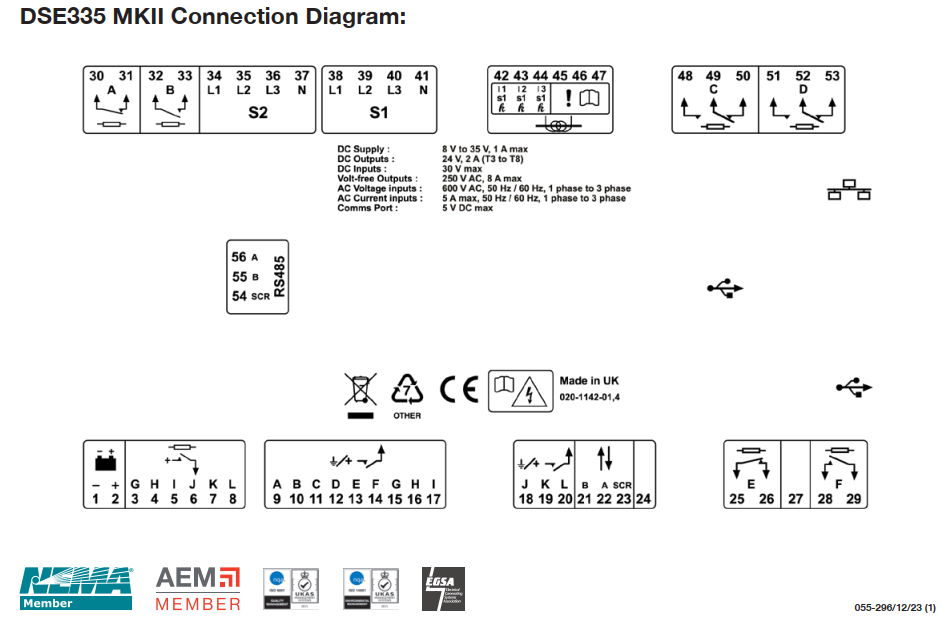

  • The DSE335 MKII is an automatic transfer switch controller designed to monitor the voltage and frequency of incoming AC supplies from two different sources. These are either generator mains (utility) or a combination of both. The module monitors S1 (Source 1) and in the event of a failure issues a start command to S2 (Source 2).
  • Once S2 is available and producing an output within limits, the module controls the transfer device and switches the load from S1 to S2. Once the S1 supply returns to within limits, the module commands a load return to S1 and shuts down S2.
  • Various timing sequences are available to prevent nuisance starting on minor supply breaks.
  • The DSE335 MKII supports multiple topologies. Features include a configurable close transition menu down to <100 ms, combined switching schemes, 415 V AC sensing for 600 V 3-phase system support, mains (utility) rated volt-free relays, a clear back-lit LCD 4-line text display, showing system status and warnings and bi-colour LEDs indicating operational status.
  • The module includes USB and RS485 ports and dedicated DSENet® terminals for system expansion.
  • The module is configured using the DSE Configuration Suite PC Software. Selected front-panel editing is also available.
  • Configurable inputs and outputs make the DSE335 MKII fully flexible to suit a wide variety of applications.
  • When no DC supply is available, a compatible DSE self-seeking power supply (DSE160) is available to order

Key Features

  • Configurable inputs (12)
  • Configurable volt-free outputs (6)
  • Configurable DC outputs (6)
  • Single combined switching schemes
  • Enhanced configurable closed transition menu (<100 ms)
  • 415 V AC S1/S2 sensing for 600 V,
  • 3-phase system support
  • Bi-colour front panel LEDs for enhanced status indication
  • RS485 communications
  • 4-Line back-lit LCD text display
  • Five key menu navigation
  • Front panel editing with PIN protection
  • LED and LCD alarm indication
  • Check sync feature
  • Passive closed transition
  • Remote monitoring
  • Source 1/Source 2 control
  • 1 A & 5 A CT secondary support
  • Phase rotation detection
  • Start & load inhibit
  • Manual restore to S1
  • Supports multiple topologies
  • Automatic switch-over between supplies
  • Rotary ATS configuration
  • Configurable timers and alarms
  • Multiple date and time scheduler
  • Power monitoring (kW h, kV Ar, kV A h, kV Ar h)
  • Load switching (load shedding outputs)
  • USB connectivity
  • Backed up real-time clock
  • Fully configurable via DSE Configuration Suite PC software
  • Configurable display languages
  • Configurable Gencomm pages
  • DSENet® expansion compatible
  • Integral PLC editor
  • Adjustable Modbus inter-frame delay

Key Benefits

  • Source 1/Source 2 provides total flexibility for the application of the product
  • Fully automatic and switch-over control minimizes the effects of power disruptions
  • User-friendly set-up and button layout
  • DSE Configuration Suite PC Software compatibility for remote control and monitoring
  • The real-time clock provides accurate event logging
  • Ethernet communications (via the DSE855 module), provide advanced remote monitoring at a low cost
  • Building management system (BMS) integration
  • IP65 rating (with supplied gasket) offers increased resistance to water ingress
  • 200-node PLC editor allows the user-configurable functions to meet specific application requirements
  • PLC monitoring via SCADA
