ATS327
ATS 327

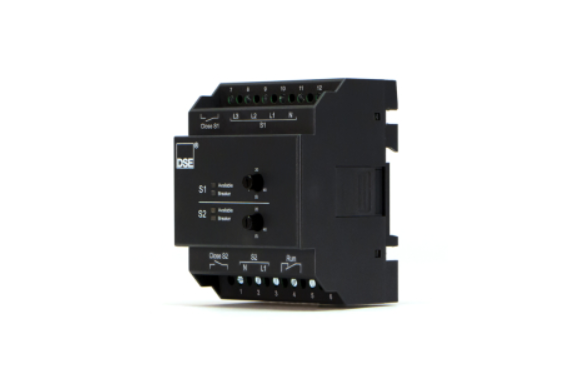

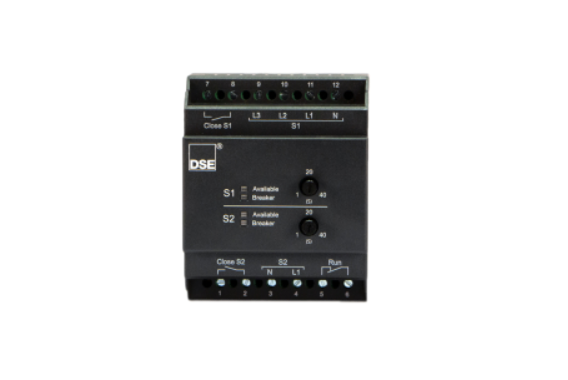

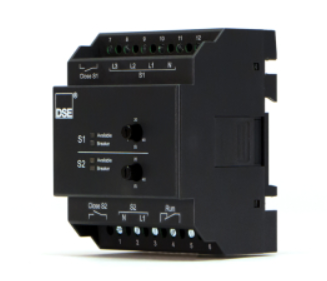

Automatic Transfer Switch Controller
The DSE327 is an Automatic Transfer Switch Control Module designed to monitor the voltage of an incoming AC supply from two different sources. This could be from both generators or mains (utility), or a combination of both. The module monitors S1 (Source 1) and in the event of a failure issues a start command to S2 (Source 2). The DSE327 can be ordered in 110 V and 230 V variants.
OVERALL SIZE
72 mm x 90.5 mm x 65 mm (2.8” x 3.6” x 2.6”)
WEIGHT
0.3 kg
PRODUCT VARIANTS
0327-01 - 327 Auto Transfer Switch Control Module (230 Volt)
0327-02 - 327 Auto Transfer Switch Control Module (110 Volt)
0327-03 - 327 Auto Transfer Switch Control Module (230 Volt - 10 Second Delay)
- The DSE327 is an Automatic Transfer Switch Control Module designed to monitor the voltage of an incoming AC supply from two different sources. This could be from both generators or mains (utility), or a combination of both. The module monitors S1 (Source 1) and in the event of a failure issues a start command to S2 (Source 2).
- Once S2 is available and producing an output within limits, the module controls the transfer device and switches the load from S1 to S2. Once the S1 supply returns to within limits, the module commands a load return to S1 and shuts down S2.
- Various timing sequences are available to prevent nuisance starting on minor supply breaks.
KEY FEATURES
- LED indicators.
- Two precision time-adjustable potentiometers.
- Source 1/Source 2 control.
- Configurable timers.
- Automatic switch-over between supplies.

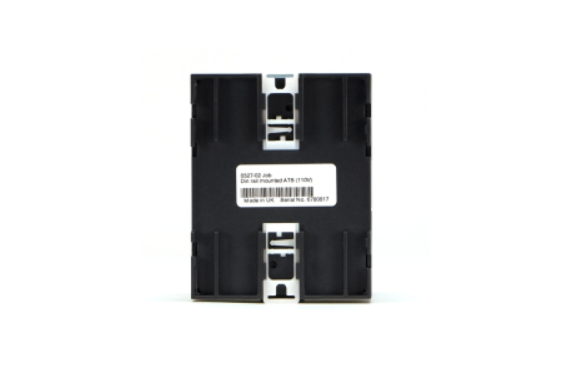

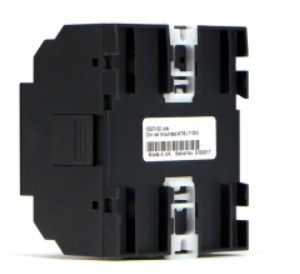

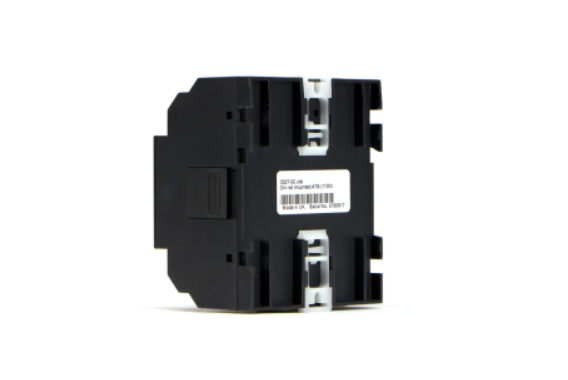

- DIN rail mounting.
KEY BENEFITS
- Source 1/Source 2 control provides total flexibility for the application of the product.
- Fully automatic switch-over control minimizes the effects caused by power disruptions.
- User-friendly set-up.
