G0123 Load Share Interface
The DSEG0123 Analogue Load Share Lines Interface converts DSE AMSC / MSC digital load share communications to universal analogue load share lines, allowing DSE paralleling controllers to seamlessly deliver kW and kvar load sharing with third-party manufactured products. The DSEG0123 also allows the DSEG8600, DSEG8900, DSE8610 MKII, DSE8610, DSE7510 and DSE5510 controllers to be added to an existing DSE load sharing application and deliver kW and kvar load sharing across all DSE controllers within the system. The flexibility of the DSEG0123 makes expanding existing systems extremely simple.

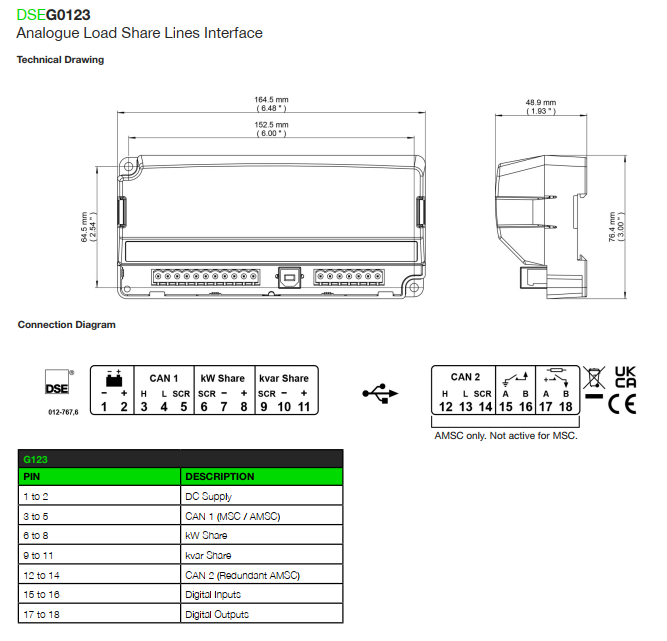

OVERALL SIZE
164.5 mm x 76.4 mm x 48.9 mm (6.48” x 3.0” x 1.93”)
WEIGHT
0.2kg
PRODUCT VARIANTS
G0123-01 - Analogue Loadshare Lines Interface
Description
The DSEG0123 Analogue Load Share Lines Interface converts DSE AMSC / MSC digital load share communications to universal analogue load share lines, allowing DSE paralleling controllers to seamlessly deliver kW and kvar load sharing with third-party manufactured products.
The DSEG0123 also allows the DSEG8600, DSEG8900, DSE8610 MKII, DSE8610, DSE7510 and DSE5510 controllers to be added to an existing DSE load sharing application and deliver kW and kvar load sharing across all DSE controllers within the system.
The flexibility of the DSEG0123 makes expanding existing systems extremely simple.
Features
- Converts a G8 Series AMSC* link to analogue load share lines.
- Converts a DSE MSC link to analogue load share lines.
- Compatible with multiple manufacturers of paralleling controllers, including Cummins, Selco, Barber Colman, DEIF and Woodward.
- Configuration Suite PC software configuration.
- PC SCADA instrumentation for system diagnostics.
- Power on / status LEDs.
- USB programming port.
- G8 Series controllers communicate across an AMSC link.*
- Non-G8 Series DSE controllers communicate across an MSC link.
- AMSC or MSC compatibility configured within PC software.
- When configured for AMSC, CAN 1 & CAN 2 are available.*
- When configured for MSC, only CAN 1 is available.
* = Feature available at G8600 product launch.
The advent of electronic load share controllers has in some cases meant that existing control systems require expensive updates if additional generating sets are added into the system. This is because many of the ‘newer’ controllers utilize proprietary communication links rather than the traditional analog load share lines (often called Parallel Lines) used in existing systems.
The DSE 8610 MKII and older load share modules utilize MultiSet Communications (MSC) link to enable load sharing between other Deep Sea Load share modules equipped with generators, as well as providing other advanced functionality not available with load share lines.
The G0123 MSC Load Share Lines Interface is designed to allow the Deep Sea Load Share Modules load sharing controller to interface with analog load share lines on existing systems without the need to replace the existing controls. As the MSC datalink is not used in applications of this type, enhanced features provided by this link are not available. E.g. Dead Bus Arbitration, load demand scheme, etc.
The G0123 monitors the load share lines and converts this into digital information. This data is then used by the onboard microprocessor to allow the G0123 to drive load share lines and to communicate on the MSC link with the host DSE Load Share controller.
When communication with the host controller is established successfully the CAN1 LED will light, if communication can’t be established it will extinguish.
