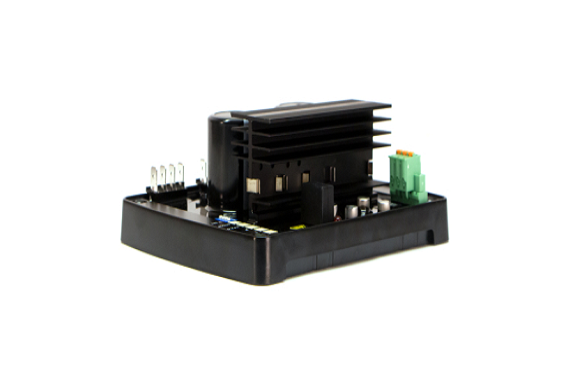

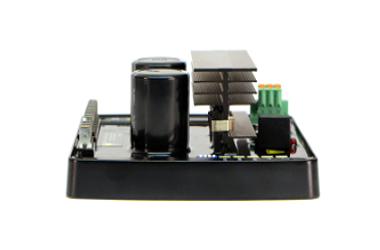

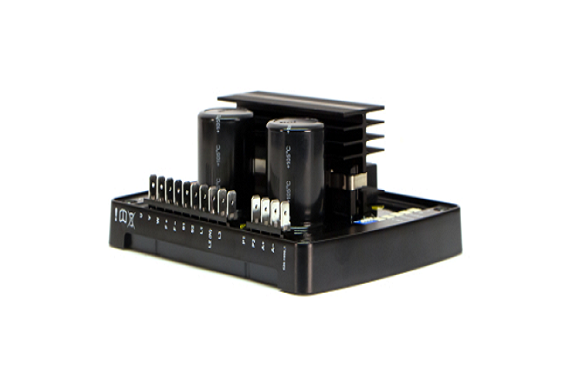

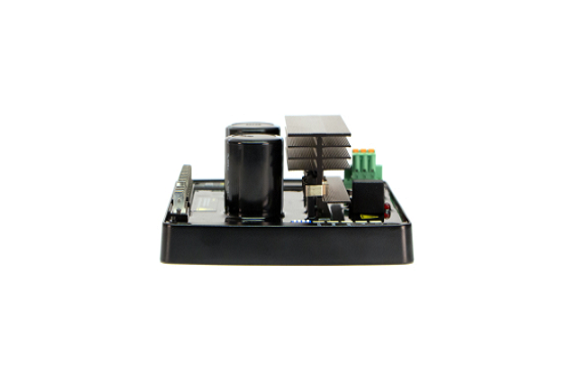

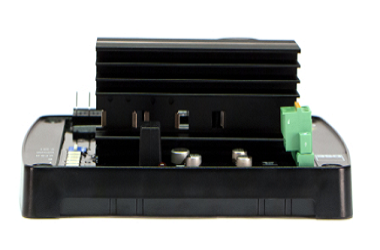

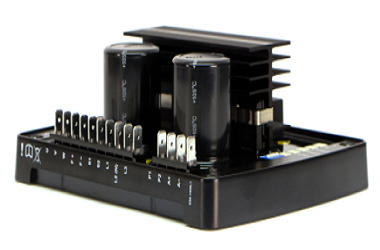

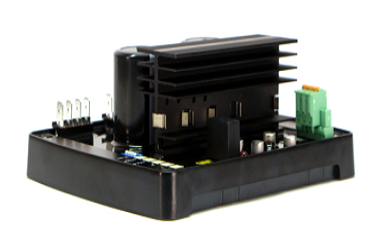

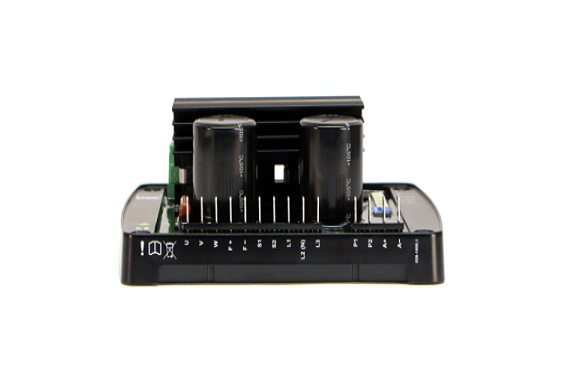

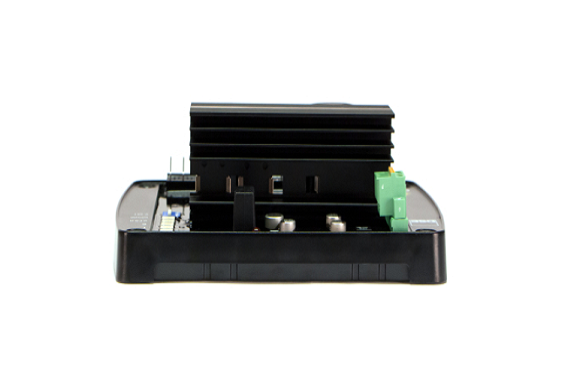

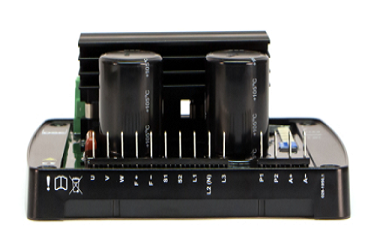

AVR A109
AVR A109

AVR A109

Digital Automatic Voltage Regulator (AVR) with CAN Communications and PMG.



The DSEA109 Digital Automatic Voltage Regulator (AVR) with CAN is designed to regulate the output voltage of an AC alternator. The DSEA109 is supplied by either a 3-phase PMG, single-phase PMG,  stator auxiliary winding, or a shunt system taking power from the output windings.

The DSEA109 eliminates the complexities involved with analog AVR designs. Analogue AVR designs can be over-sensitive to changes in temperature which affects stability whereas the DSEA109 AVR maintains a smooth, stable regulated AC output voltage, regardless of the electrical load connected. The DSEA109 also features 3-phase sensing for better regulation.

Please Note: The DSE815 interface is required for programming.

OVERALL SIZE
180 mm x 145 mm x 61 mm (7.0” x 5.7” x 2.4”)
WEIGHT
0.46 kg
PRODUCT VARIANTS
A109-01 - A109 Digital AVR With CAN Communications & PMG

Request a quote
m DATA SHEET
n Operators Manual
o PC Software / Software Manual

DSEA109 DIGITAL AUTOMATIC VOLTAGE REGULATOR (AVR) WITH CAN COMMUNICATIONS & PMG

  • The DSEA109 Digital Automatic Voltage Regulator (AVR) with CAN is designed to regulate the output voltage of an AC alternator. The DSEA109 is supplied by either a 3-phase PMG, single-phase PMG, stator auxiliary winding, or a shunt system taking power from the output windings.
  • The DSEA109 eliminates the complexities involved with analog AVR designs. Analogue AVR designs can be over-sensitive to changes in temperature which affects stability whereas the DSEA109 AVR maintains a smooth, stable regulated AC output voltage, regardless of the electrical load connected. The DSEA109 also features 3-phase sensing for better regulation.
  • The DSEA109 is simple to install and set up using either the DSE Configuration Suite PC Software and the DSE815 configuration interface or five onboard potentiometers and 4 DIP switches, combined with a status LED providing a simple user interface.
  • The DSEA109 Digital AVR has numerous advanced features such as a CAN port providing J1939 communications, soft start ramping, connection for a quadrature droop CT, and the ability to perform remote voltage adjustment, making it perfect for synchronizing and load-sharing applications.
  • The DSEA109 Digital AVR is an ideal option for both OEM and retrofit solutions.

KEY FEATURES

  • Power input compatible with 3-phase PMG, single-phase PMG, auxiliary, and shunt windings.
  • 3-phase or single-phase generator output voltage sensing.
  • CAN port providing J1939 communications.
  • Soft start ramping
  • Under Frequency Roll Off (UFRO) protection with optional instantaneous step.
  • Loss of voltage sensing protection.
  • Over-excitation protection.
  • Remote voltage adjustment.
  • 5 kΩ potentiometer with open circuit protection
  • -10 V DC to 10 V DC.
  • DIP switch selection for 6 configurations and 2 stability ranges.
  • Potentiometer adjustment for voltage set points, droop, UFRO, proportional and integral gain.
  • LED indication for fault and operating status.
  • Configurable via DSE Configuration
  • Suite PC software is connected via the DSE815 configuration interface.
  • Chassis mountable potted enclosure.
  • Spade terminals for simple connection.

KEY BENEFITS

  • Digital electronics ensure a smooth, stable, regulated AC output voltage from the alternator.
  • Configurable to suit a wide range of alternators with auxiliary winding or shunt power supplies as well as PMG.
  • Suitable for generator synchronizing and load-sharing applications with connections for a quadrature droop CT and remote voltage adjustment.
  • Compatible with all DSE synchronizing and load-sharing controllers.
  • Licence-free PC software
  • Comprehensive PC configuration using the DSE Configuration Suite PC Software and the DSE815 Configuration Interface.
  • Simple to use with the onboard setup using a combination of DIP switches and potentiometers.
  • Communicates with 3rd party equipment using J1939 communications.
